HMC412AMS8GE - Analog Devices

Description: Analog Devices Hittite HMC412AMS8GE, Up-Down Converter & Mixer Circuit 15GHz Gain=11.5 dB 8-Pin MSOP

Download HMC412AMS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

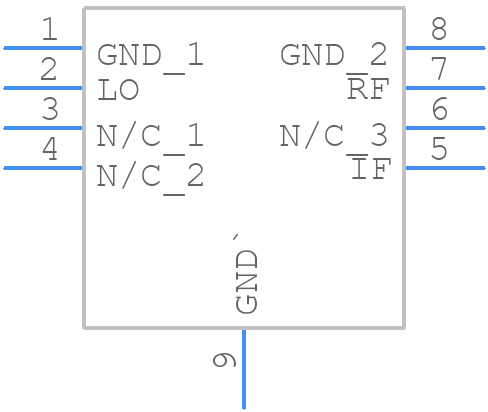

HMC412AMS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC412AMS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H412A
click to zoom
3D Models
HMC412AMS8GE - Analog Devices - 3D model - Small Outline Packages - H412A
click to zoom

HMC412AMS8GE Details

  • Manufacturer Part Number:

    HMC412AMS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    11 dB

  • Input Power-Max (CW):

    24 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    15000 MHz

  • Operating Frequency-Min:

    9000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Terminal Finish:

    Matte Tin (Sn)

HMC412AMS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC412AMS8GE requires a single 5V supply. Ensure the voltage supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC412AMS8GE can operate up to 12 GHz, but the maximum frequency depends on the specific application and the device's configuration.
  • Minimize the noise figure by optimizing the input matching network, using a low-noise voltage regulator, and ensuring the device is operated within its recommended operating conditions.
  • Yes, the HMC412AMS8GE can be used in a differential configuration to improve common-mode rejection and reduce noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC412AMS8GE Overview

Use the download button to access the HMC412AMS8GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC41, or try a keyword search, such as RF/Microwave Mixers
