Part Image

HMC412AMS8GETR - Analog Devices

Description: RF Mixer IC General Purpose Up/Down Converter 9GHz ~ 15GHz 8-MSOPG

Download HMC412AMS8GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

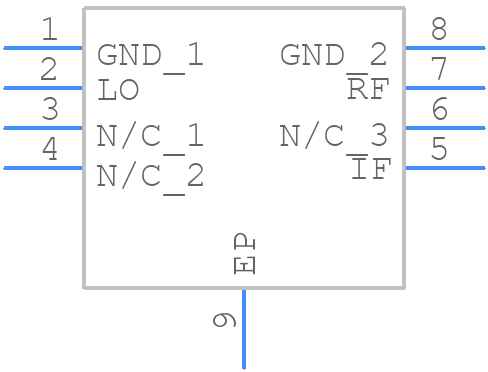

Symbol
HMC412AMS8GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC412AMS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MINI_SO_EP_2026-1.1
click to zoom

HMC412AMS8GETR Details

  • Manufacturer Part Number:

    HMC412AMS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    11 dB

  • Input Power-Max (CW):

    24 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    15000 MHz

  • Operating Frequency-Min:

    9000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

HMC412AMS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC412AMS8GETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors. Bias the device with a 50Ω termination resistor.
  • The HMC412AMS8GETR is designed to operate up to 12 GHz, but the maximum operating frequency may vary depending on the specific application and PCB layout.
  • The HMC412AMS8GETR has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a thermal pad or heat sink, and keep the device away from heat sources.
  • Use ESD protection devices such as TVS diodes or ESD arrays to protect the HMC412AMS8GETR from electrostatic discharge. Follow the recommended ESD protection circuit in the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC412AMS8GETR Overview

Use the download button to access the HMC412AMS8GETR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC41, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
