HMC412AMS8GTR - Analog Devices

Description: Up/Down Conv Mixer 15GHz 8-Pin MSOP EP T/R

Download HMC412AMS8GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

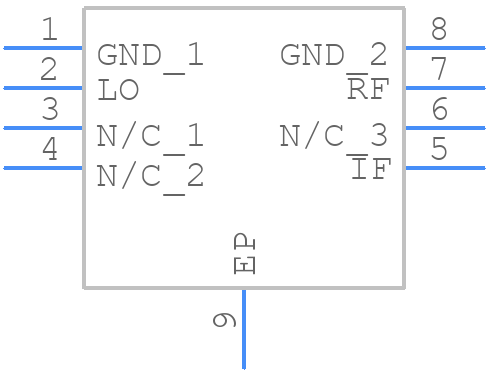

HMC412AMS8GTR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC412AMS8GTR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC437MS8GE-
click to zoom
3D Models
HMC412AMS8GTR - Analog Devices - 3D model - Small Outline Packages - HMC437MS8GE-
click to zoom

HMC412AMS8GTR Details

  • Manufacturer Part Number:

    HMC412AMS8GTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES
