HMC412BMS8GE - Analog Devices

Description: ANALOG DEVICES - HMC412BMS8GE - DOUBLE-BALANCED MIXER, 8-16GHZ, MSOP-8

Download HMC412BMS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

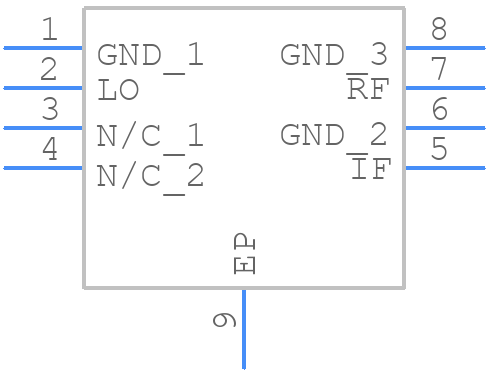

Symbol
HMC412BMS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC412BMS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 412B
click to zoom
3D Models
HMC412BMS8GE - Analog Devices - 3D model - Small Outline Packages - 412B
click to zoom

HMC412BMS8GE Details

  • Manufacturer Part Number:

    HMC412BMS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP8GE, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9.4 dB

  • Input Power-Max (CW):

    24 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    15000 MHz

  • Operating Frequency-Min:

    9000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    TRIPLE BALANCED

  • Terminal Finish:

    Matte Tin (Sn)

HMC412BMS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC412BMS8GE requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias voltage is well-regulated and decoupled with capacitors to minimize noise.
  • The HMC412BMS8GE is rated for operation from -40°C to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability.
  • Use a logic analyzer or oscilloscope to monitor the device's input and output signals. Check for proper biasing, decoupling, and signal integrity. Consult the datasheet and application notes for troubleshooting guides.
  • The HMC412BMS8GE is not specifically designed for radiation-hardened applications. Consult with Analog Devices Inc. for radiation-hardened alternatives or custom solutions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC412BMS8GE Overview

Use the download button to access the HMC412BMS8GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC41, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
