Part Image

HMC412BMS8GETR - Analog Devices

Description: RF Mixer DBL-BAL Mixer SMT 9 - 15 GHz

Download HMC412BMS8GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

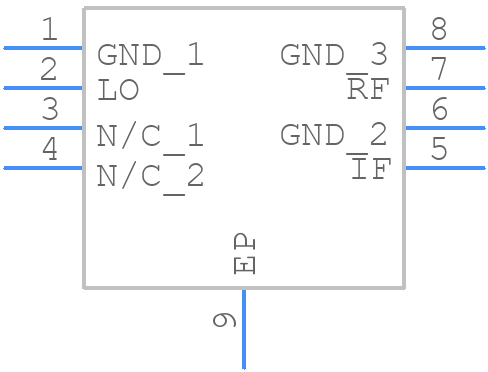

Symbol
HMC412BMS8GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC412BMS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 412B
click to zoom
3D Models
HMC412BMS8GETR - Analog Devices - 3D model - Small Outline Packages - 412B
click to zoom

HMC412BMS8GETR Details

  • Manufacturer Part Number:

    HMC412BMS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, MSOP8GE, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9.4 dB

  • Input Power-Max (CW):

    24 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    15000 MHz

  • Operating Frequency-Min:

    9000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    TRIPLE BALANCED

  • Terminal Finish:

    Matte Tin (Sn)

HMC412BMS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC412BMS8GETR requires a single +5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC412BMS8GETR can operate up to 12 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC412BMS8GETR has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures.
  • The recommended input and output impedance for the HMC412BMS8GETR is 50 ohms. Ensure that the input and output traces are properly terminated to minimize reflections and ensure optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC412BMS8GETR Overview

Use the download button to access the HMC412BMS8GETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC41, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
