HMC413QS16GETR footprint, schematic symbol and 3D model by Analog Devices

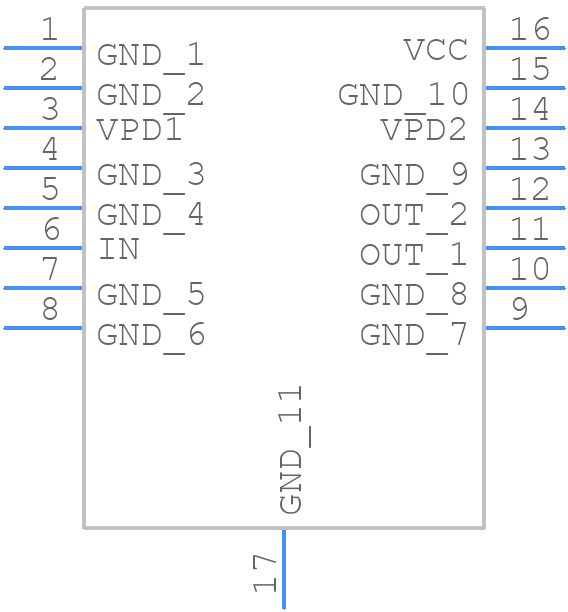

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC413QS16GETR
Part Number HMC413QS16GETR
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - QSOP_EP
Released Date Aug 29, 2026
Last Modified Date Aug 29, 2026 3:14 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC413QS16GETR Details

Manufacturer Part Number:
HMC413QS16GETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Pin Count:
16
Manufacturer Package Code:
HRC-16-1
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
18 dB
Input Power-Max (CW):
15 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
16
Operating Frequency-Max:
2200 MHz
Operating Frequency-Min:
1600 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
SSOP16,.25
Power Supplies:
3.6,5 V
RF/Microwave Device Type:
NARROW BAND MEDIUM POWER
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Matte Tin (Sn)
VSWR-Max:
2.1
