HMC414MS8GE - Analog Devices

Description: Analog Devices Hittite HMC414MS8GE, RF Amplifier Power, 20 dB 2.8 GHz, 8-Pin MSOP

Download HMC414MS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

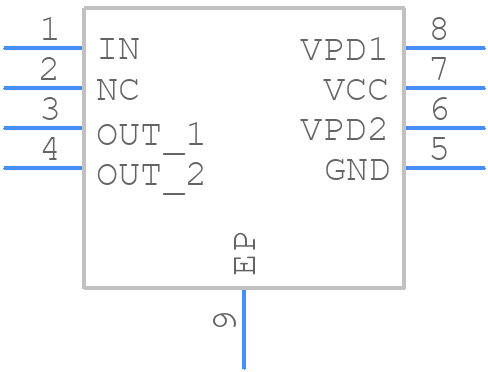

Symbol
HMC414MS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC414MS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin MSOP--
click to zoom
3D Models
HMC414MS8GE - Analog Devices - 3D model - Small Outline Packages - 8-Pin MSOP--
click to zoom

HMC414MS8GE Details

  • Manufacturer Part Number:

    HMC414MS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    17 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2800 MHz

  • Operating Frequency-Min:

    2200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    NARROW BAND MEDIUM POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC414MS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC414MS8GE requires a single 5V power supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors. Bias the device with a 50Ω termination resistor.
  • The HMC414MS8GE is designed to operate up to 18 GHz, but the maximum operating frequency may vary depending on the specific application and PCB layout.
  • The HMC414MS8GE has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid overheating, as it can reduce the device's lifespan.
  • The HMC414MS8GE has internal ESD protection, but additional external protection is recommended. Use ESD protection diodes or a TVS (Transient Voltage Suppressor) to protect the device from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC414MS8GE Overview

Use the download button to access the HMC414MS8GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC41, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
