HMC415LP3E - Analog Devices

Description: RF Amplifier InGaP HBT pow amp SMT, 4.9 - 5.9 GHz

Download HMC415LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

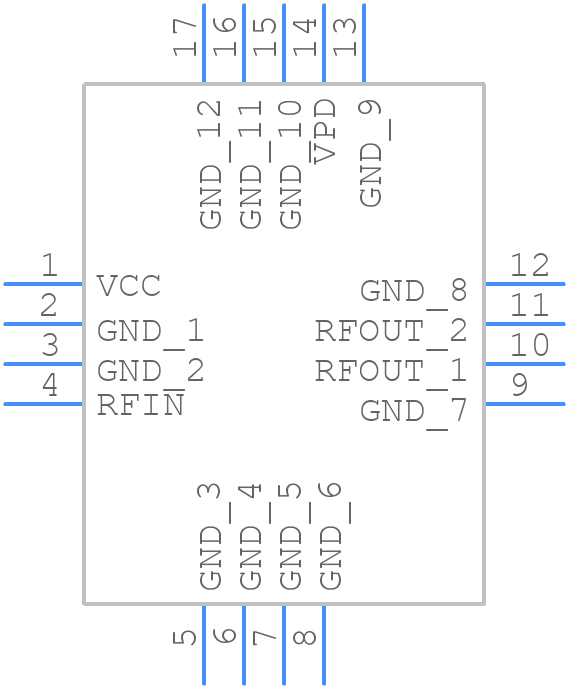

HMC415LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC415LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC415LP3E
click to zoom
3D Models
HMC415LP3E - Analog Devices - 3D model - Quad Flat No-Lead - HMC415LP3E
click to zoom

HMC415LP3E Details

  • Manufacturer Part Number:

    HMC415LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    16 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    5900 MHz

  • Operating Frequency-Min:

    4900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)
