HMC416LP4 - Analog Devices

Description: VCO SMT w/Buffer Amplifier, 2.75 - 3.0 GHz

Download HMC416LP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

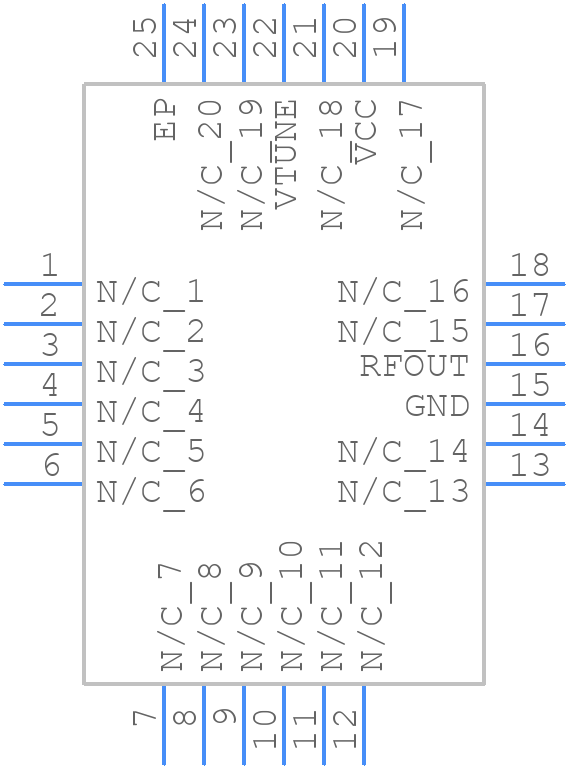

Symbol
HMC416LP4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC416LP4 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4 mm x 4 mm SMT
click to zoom

HMC416LP4 Details

  • Manufacturer Part Number:

    HMC416LP4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEADLESS, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    10 V

  • JESD-609 Code:

    e0

  • Modulation Sensitivity:

    -1 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    2750 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    4.5 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Phase Noise:

    -114 dBc/Hz

  • Physical Dimension:

    4.1mm x 4.1mm x 1.0mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC416LP4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC416LP4 involves keeping the signal paths short, using a solid ground plane, and separating the analog and digital sections of the board. It's also important to follow the recommended pinout and component placement guidelines provided by Analog Devices.
  • To optimize power supply decoupling, use a combination of high-frequency and low-frequency capacitors (e.g., 100nF and 10uF) placed close to the device's power pins. Additionally, use a low-ESR capacitor (e.g., 10uF) on the Vcc pin to reduce voltage droop.
  • The HMC416LP4 is rated for operation from -40°C to +85°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat sinking to maintain reliable operation within this temperature range.
  • To troubleshoot issues with the HMC416LP4, start by verifying the PCB layout and component values. Check for proper power supply decoupling, signal integrity, and component tolerances. Use simulation tools or Spice models to analyze the circuit and identify potential issues. If necessary, consult with Analog Devices' technical support or application notes for guidance.
  • To protect the HMC416LP4 from electrostatic discharge (ESD), use ESD-sensitive handling procedures during assembly and testing. Implement ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Ensure that the PCB design includes ESD protection features, such as guard rings and ESD-safe component placement.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC416LP4 Overview

Use the download button to access the HMC416LP4 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC41, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
