HMC416LP4E - Analog Devices

Description: VCO Oscillators VCO SMT w/Buffer amp, 2.75 - 3.0 GHz

Download HMC416LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

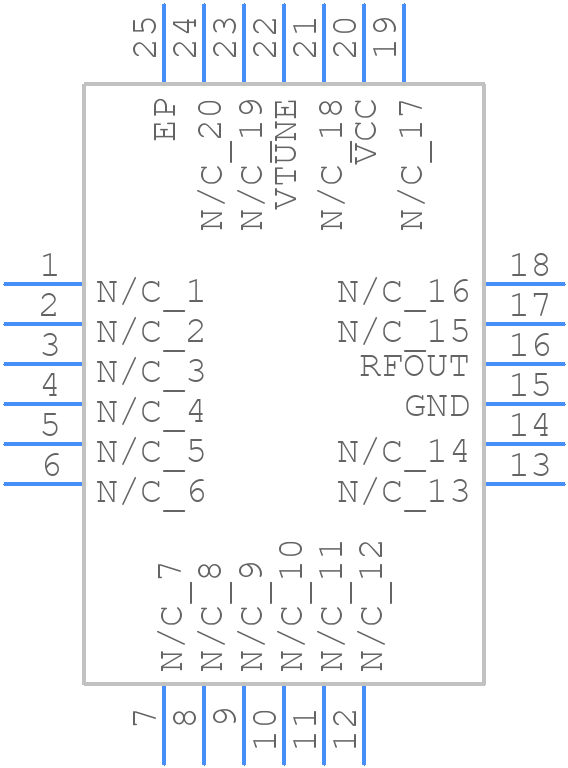

Symbol
HMC416LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC416LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 pin QFN_2020
click to zoom
3D Models
HMC416LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24 pin QFN_2020
click to zoom

HMC416LP4E Details

  • Manufacturer Part Number:

    HMC416LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEADLESS, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    10 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    -1 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    2750 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    4.5 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Phase Noise:

    -114 dBc/Hz

  • Physical Dimension:

    4.1mm x 4.1mm x 1.0mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC416LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC416LP4E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA.
  • The HMC416LP4E can operate up to 6 GHz, but the optimal frequency range is between 2 GHz and 4 GHz for best performance.
  • The HMC416LP4E has a parallel interface. Use a 3.3V or 5V logic level interface, and ensure the interface signals are properly terminated to prevent signal reflections.
  • The typical current consumption of the HMC416LP4E is 10mA at 5V, but this can vary depending on the operating frequency and bias conditions.
