HMC424ALP3E - Analog Devices

Description: Attenuators 5 dB LSB 6-Bit dig atten SMT

Download HMC424ALP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

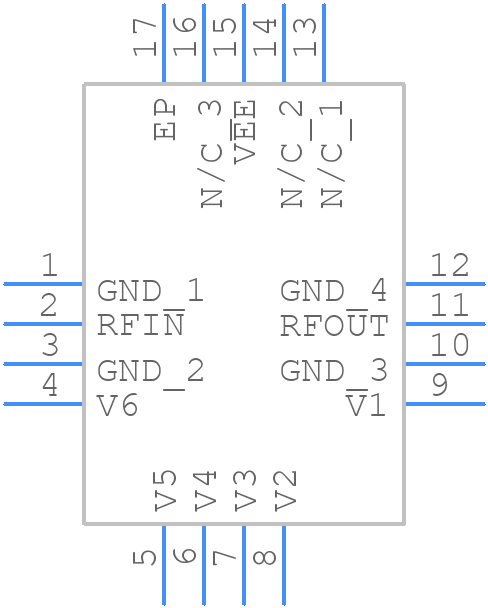

HMC424ALP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC424ALP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN_16-
click to zoom
3D Models
HMC424ALP3E - Analog Devices - 3D model - Quad Flat No-Lead - QFN_16-
click to zoom

HMC424ALP3E Details

  • Manufacturer Part Number:

    HMC424ALP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VEED-4, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-50

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    4.4 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    13000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    -3/-5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Supply Current-Max:

    5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.58

HMC424ALP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC424ALP3E requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC424ALP3E can operate up to 4 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • Minimize the noise figure by using a low-noise power supply, keeping the device away from noise sources, and using a good quality PCB with a solid ground plane.
  • The recommended input and output impedance for the HMC424ALP3E is 50 ohms. Ensure that the input and output are properly matched to minimize reflections and ensure optimal performance.
