HMC425ALP3E - Analog Devices

Description: 6-Bit Dig. Control Attenuator 8GHz QFN16

Download HMC425ALP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

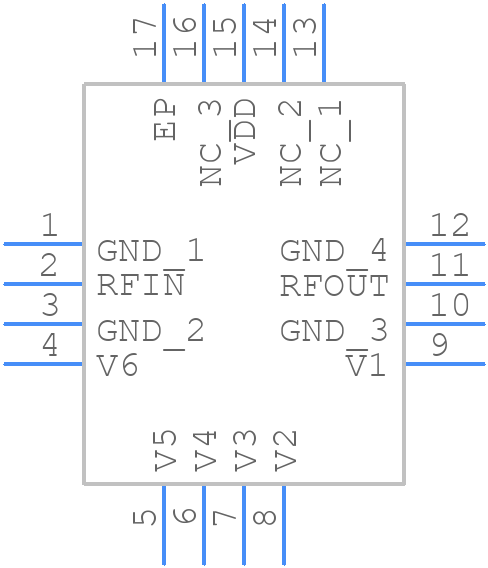

HMC425ALP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC425ALP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-50
click to zoom
3D Models
HMC425ALP3E - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-50
click to zoom

HMC425ALP3E Details

  • Manufacturer Part Number:

    HMC425ALP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    4.3 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    2200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.43

HMC425ALP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC425ALP3E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 20mA.
  • The HMC425ALP3E can operate up to 6 GHz, but the optimal frequency range is between 2 GHz and 4 GHz for best performance.
  • The HMC425ALP3E has a thermal pad on the bottom of the package. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary.
  • The recommended input and output impedance is 50 ohms. Ensure the input and output traces are impedance-matched to minimize reflections and ensure optimal performance.
