HMC425LP3E - Analog Devices

Description: Analog Devices Hittite HMC425LP3E, Variable Attenuator, 31.5dB, 8GHz, Maximum of 5 V 16-Pin SMT

Download HMC425LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

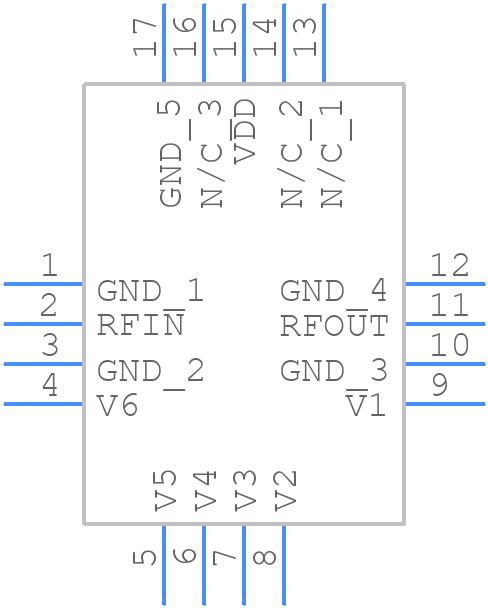

HMC425LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC425LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3x3 mm SMT
click to zoom
3D Models
HMC425LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 3x3 mm SMT
click to zoom

HMC425LP3E Details

  • Manufacturer Part Number:

    HMC425LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    4.3 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    2200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.43

HMC425LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC425LP3E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA.
  • The HMC425LP3E can operate up to 6 GHz, but the optimal frequency range is between 100 MHz to 3 GHz for best performance.
  • The HMC425LP3E has a parallel interface. Use a 3.3V or 5V logic level translator to interface with a microcontroller or FPGA. Ensure the interface signals are properly terminated and matched to the PCB impedance.
  • The typical current consumption of the HMC425LP3E is 10mA at 5V supply voltage. However, this can vary depending on the operating frequency and bias current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC425LP3E Overview

Use the download button to access the HMC425LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC42, or try a keyword search, such as RF/Microwave Attenuators
