HMC427ALP3E - Analog Devices

Description: Analog Devices HMC427ALP3E, RF Switch 8GHz 35dB Isolation GaAs MMIC Maximum of +5 V 16-Pin QFN

Download HMC427ALP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

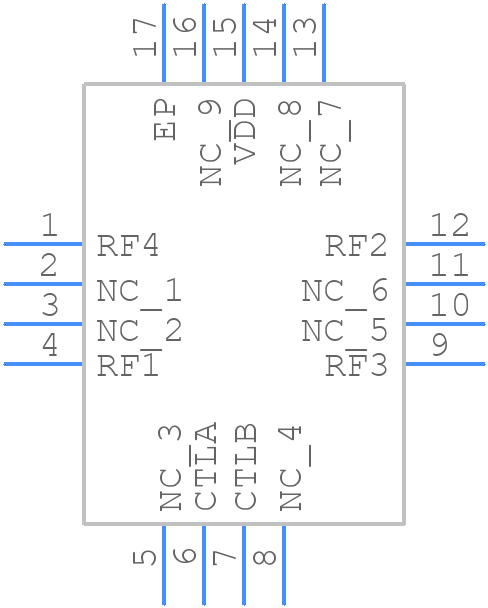

Symbol
HMC427ALP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC427ALP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC427ALP3E
click to zoom
3D Models
HMC427ALP3E - Analog Devices - 3D model - Quad Flat No-Lead - HMC427ALP3E
click to zoom

HMC427ALP3E Details

  • Manufacturer Part Number:

    HMC427ALP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    26 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Insertion Loss-Max:

    2.1 dB

  • Isolation-Min:

    35 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.01 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    TRANSFER SWITCH

  • Supply Current-Max:

    0.01 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.29

HMC427ALP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC427ALP3E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 20mA.
  • The HMC427ALP3E can operate up to 6 GHz, but the optimal frequency range is between 2 GHz and 4 GHz for best performance.
  • The HMC427ALP3E has a thermal pad on the bottom of the package. Ensure good thermal contact with a heat sink or a thermal pad on the PCB to dissipate heat. Keep the ambient temperature below 85°C for optimal performance.
  • The recommended input impedance is 50 ohms, and the output impedance is also 50 ohms. Ensure proper impedance matching for optimal performance.
