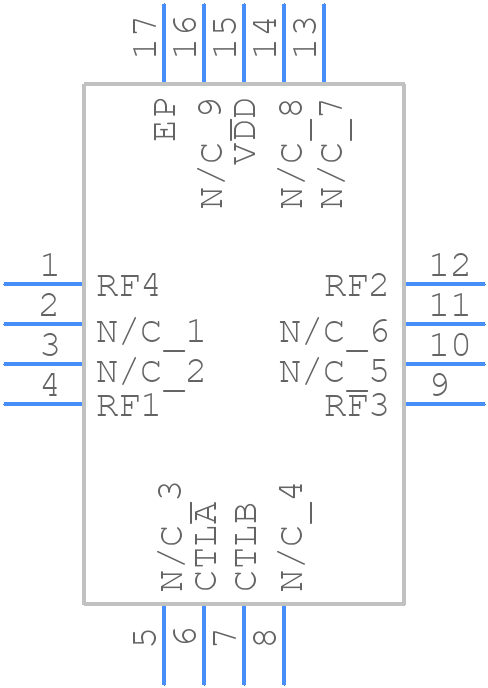

HMC427LP3E - Analog Devices

HMC427LP3E Details

• Manufacturer Part Number:

  HMC427LP3E

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 16 PIN

• Pin Count:

  16

• Manufacturer Package Code:

  HCP-16-3

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• 1dB Compression Point:

  26 dBm

• Additional Feature:

  HIGH ISOLATION

• Characteristic Impedance:

  50 Ω

• Construction:

  COMPONENT

• Input Power-Max (CW):

  26.99 dBm

• Insertion Loss-Max:

  2.1 dB

• Isolation-Min:

  27 dB

• JESD-609 Code:

  e3

• Mounting Feature:

  SURFACE MOUNT

• Number of Functions:

  1

• Number of Terminals:

  16

• On Time-Nom:

  0.004 µs

• Operating Frequency-Max:

  8000 MHz

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Port Termination:

  ABSORPTIVE

• RF/Microwave Device Type:

  TRANSFER SWITCH

• Supply Current-Max:

  0.01 mA

• Surface Mount:

  YES

• Technology:

  GAAS

• Terminal Finish:

  Matte Tin (Sn)

• VSWR-Max:

  1.33
