HMC430LP4E - Analog Devices

Description: Analog Devices Hittite HMC430LP4E, RF Amplifier Low Noise 5.5 GHz, 24-Pin SMT

Download HMC430LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

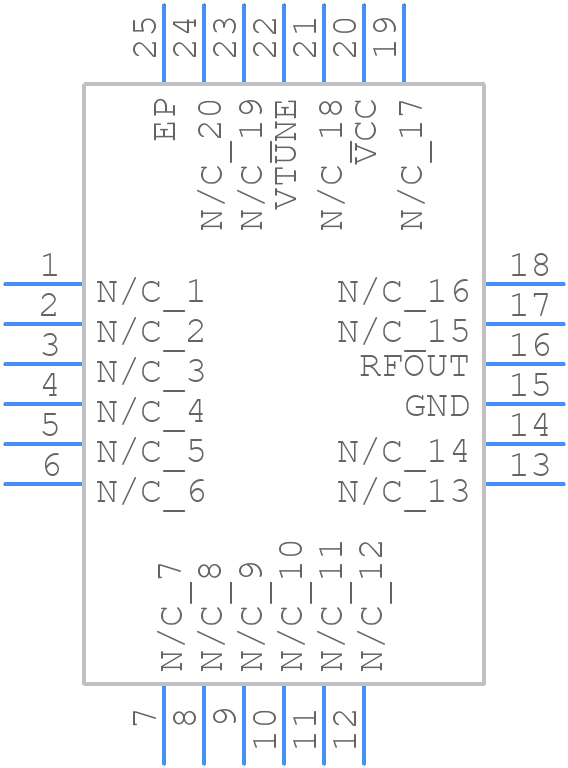

Symbol
HMC430LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC430LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin QFN
click to zoom
3D Models
HMC430LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24-Pin QFN
click to zoom

HMC430LP4E Details

  • Manufacturer Part Number:

    HMC430LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    10 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    12 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    5500 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Frequency-Nom:

    5500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    -1 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Phase Noise:

    -103 dBc/Hz

  • Physical Dimension:

    4.1mm x 4.1mm x 1.0mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Max:

    3.25 V

  • Supply Voltage-Min:

    2.75 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

HMC430LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC430LP4E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC430LP4E can operate up to 4 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 2 GHz for optimal performance.
  • To minimize the noise figure, ensure the input signal is properly matched to the device, and the output is properly terminated. Use a low-noise power supply, and decouple the power supply lines with 0.1uF and 10uF capacitors. Additionally, use a high-quality PCB material with low dielectric loss.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Ensure the input and output are properly matched to minimize reflections and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC430LP4E Overview

Use the download button to access the HMC430LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC43, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
