HMC434SRJZ-EP-PT - Analog Devices

Description: Prescaler EP InGaP HBT Divide-by-8

Download HMC434SRJZ-EP-PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

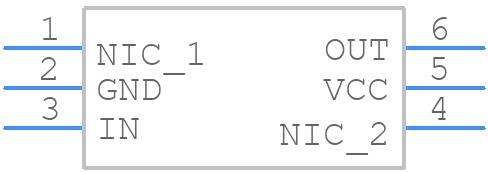

Symbol
HMC434SRJZ-EP-PT - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC434SRJZ-EP-PT - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - (RJ-6)
click to zoom
3D Models
HMC434SRJZ-EP-PT - Analog Devices - 3D model - SOT23 (6-Pin) - (RJ-6)
click to zoom

HMC434SRJZ-EP-PT Details

  • Manufacturer Part Number:

    HMC434SRJZ-EP-PT

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Family:

    434

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Logic IC Type:

    PRESCALER

  • Moisture Sensitivity Level:

    3

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    3.15 V

  • Supply Voltage-Min (Vsup):

    2.85 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

HMC434SRJZ-EP-PT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane. Use a common mode choke or a ferrite bead to filter the power supply lines.
  • The device requires a single 5V power supply. Ensure the power supply is clean and well-regulated. Use a voltage regulator or a low-dropout regulator (LDO) to regulate the power supply. Decouple the power supply lines with 10uF and 100nF capacitors.
  • The HMC434SRJZ-EP-PT is rated for operation from -40°C to 85°C. However, the device may still function outside this range, but with reduced performance and reliability.
  • Common issues include oscillations, noise, and output stage saturation. Check the power supply, PCB layout, and signal integrity. Use an oscilloscope to measure the output signal and check for any signs of oscillation or noise. Consult the datasheet and application notes for troubleshooting guides.
  • The HMC434SRJZ-EP-PT is an ESD-sensitive device. Use ESD protection devices such as TVS diodes or ESD protection arrays on the input and output pins. Handle the device with ESD-safe equipment and follow proper ESD handling procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC434SRJZ-EP-PT Overview

Use the download button to access the HMC434SRJZ-EP-PT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC43, or try a keyword search, such as Prescaler/Multivibrators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
