HMC435AMS8G - Analog Devices

Description: RF Switch ICs SPDT hi Isolation Switch SMT, DC-4 GHz

Download HMC435AMS8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

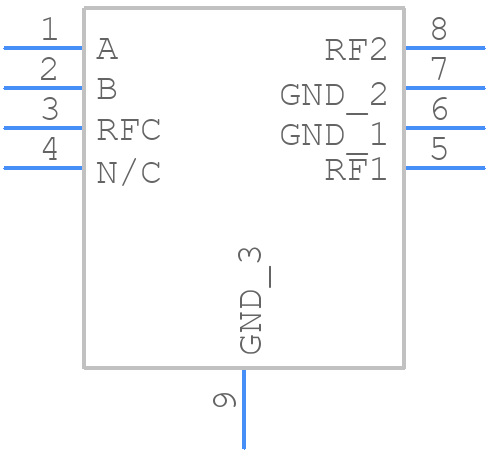

HMC435AMS8G - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC435AMS8G - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H435A
click to zoom
3D Models
HMC435AMS8G - Analog Devices - 3D model - Small Outline Packages - H435A
click to zoom

HMC435AMS8G Details

  • Manufacturer Part Number:

    HMC435AMS8G

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-86, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    30 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30.97 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    30 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.06 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    MES

  • VSWR-Max:

    1.15

HMC435AMS8G Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC435AMS8G can be found in the 'PCB Layout and Thermal Management' section of the device's evaluation board documentation. It is essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
  • To optimize power supply decoupling, use a combination of high-frequency and low-frequency capacitors (e.g., 100 nF and 10 μF) placed close to the device's power pins. Additionally, use a low-impedance power supply and ensure that the power supply lines are well-filtered and decoupled from the RF signal lines.
  • The recommended operating temperature range for the HMC435AMS8G is -40°C to +85°C. However, the device can operate up to +105°C with reduced performance and reliability. It is essential to ensure proper thermal management to maintain a safe operating temperature.
  • To troubleshoot common issues, start by verifying the device's operating conditions, power supply, and PCB layout. Check for proper termination, impedance matching, and signal integrity. Use simulation tools and/or measurement equipment (e.g., spectrum analyzer, oscilloscope) to identify and isolate the problem. Consult the device's datasheet, application notes, and evaluation board documentation for guidance.
  • The HMC435AMS8G is a sensitive device and requires proper ESD protection and handling. Use an ESD wrist strap or mat, and handle the device by the package body only. Avoid touching the pins or exposed die. Store the device in an anti-static bag or container, and follow proper soldering and assembly procedures to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC435AMS8G Overview

Use the download button to access the HMC435AMS8G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC43, or try a keyword search, such as RF/Microwave Switches
