- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC437MS8GE
- Part Number HMC437MS8GE
- Manufacturer Analog Devices
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - HMC437MS8GE-
- Released Date Apr 27, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC437MS8GE Details
-
Manufacturer Part Number:
HMC437MS8GE
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SMT-8
-
Pin Count:
8
-
Manufacturer Package Code:
HRH-8-1
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC437MS8GE Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
-
The HMC437MS8GE requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
-
The HMC437MS8GE can operate up to 4 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 2 GHz for optimal performance.
-
To minimize the noise figure, ensure the device is operated at the recommended bias point, and the input and output impedances are matched. Use a low-noise power supply, and decouple the power supply lines with 0.1uF and 10uF capacitors. Additionally, use a high-quality PCB material with low dielectric loss.
-
The HMC437MS8GE is a high-power device and requires proper thermal management. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The maximum junction temperature is 150°C, and the device should be operated at a case temperature below 85°C.
Trust Checks
Community Provided
System Verified
Community Approved
HMC437MS8GE Overview

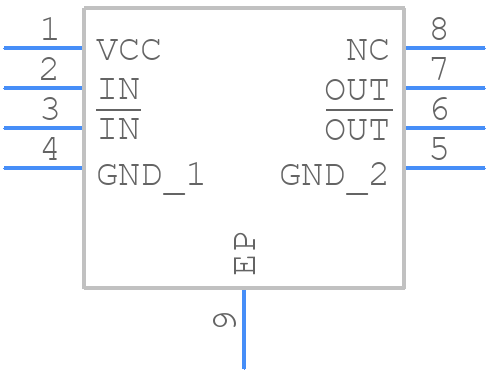

Use the download button to access the HMC437MS8GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC43,
or try a keyword search, such as Prescaler/Multivibrators
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
