HMC437MS8GTR - Analog Devices

Description: Prescaler InGaP HBT Divide-by-3 SMT, DC - 7 GHz

Download HMC437MS8GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

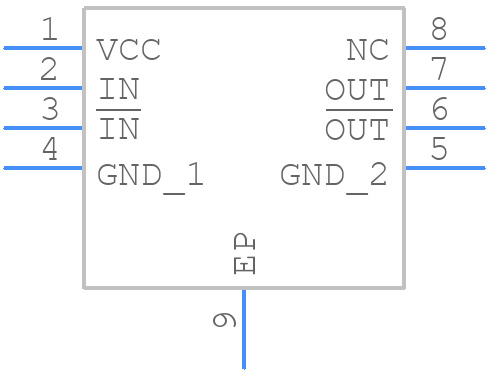

HMC437MS8GTR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC437MS8GTR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin MSOP--
click to zoom
3D Models
HMC437MS8GTR - Analog Devices - 3D model - Small Outline Packages - 8-Pin MSOP--
click to zoom

HMC437MS8GTR Details

  • Manufacturer Part Number:

    HMC437MS8GTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, SMT-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Family:

    437

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Logic IC Type:

    PRESCALER

  • Max Frequency@Nom-Sup:

    7000000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • fmax-Min:

    7000 MHz

HMC437MS8GTR Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in their application note AN-1369, which includes guidelines for thermal vias, heat sinks, and PCB stack-up to ensure optimal performance and thermal dissipation.
  • Analog Devices provides a tuning guide in their application note AN-1368, which includes step-by-step procedures for optimizing the biasing and tuning of the HMC437MS8GTR for various frequency bands and applications.
  • Analog Devices offers the HMC437MS8GTR-EVAL evaluation board, which includes a PCB with the HMC437MS8GTR, as well as software tools such as the ADI Visual Analog software and the HMC437MS8GTR evaluation software, which provide a graphical user interface for evaluating and developing with the device.
  • Analog Devices provides guidelines for EMI compliance in their application note AN-1367, which includes recommendations for PCB layout, shielding, and filtering to minimize EMI emissions and ensure compliance with regulatory standards.
  • The HMC437MS8GTR has undergone rigorous reliability and qualification tests, including temperature cycling, humidity testing, and mechanical stress testing, as outlined in Analog Devices' reliability report, which is available upon request.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC437MS8GTR Overview

Use the download button to access the HMC437MS8GTR schematic symbol, PCB footprint, and 3D model.
