HMC438MS8GTR - Analog Devices

Description: SMT GaAs HBT MMIC Divide-by-5, DC - 7 GHz

Download HMC438MS8GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

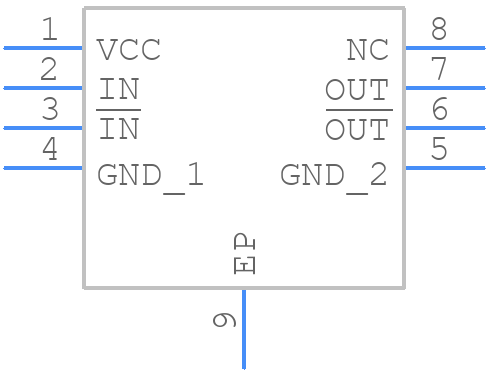

HMC438MS8GTR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC438MS8GTR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RH-8-1)
click to zoom
3D Models
HMC438MS8GTR - Analog Devices - 3D model - Small Outline Packages - (RH-8-1)
click to zoom

HMC438MS8GTR Details

  • Manufacturer Part Number:

    HMC438MS8GTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, SMT-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Family:

    438

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Logic IC Type:

    PRESCALER

  • Max Frequency@Nom-Sup:

    7000000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    3 mm

  • fmax-Min:

    7000 MHz

HMC438MS8GTR Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guidelines in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency and high-power applications.
  • Analog Devices provides a set of recommended biasing and tuning procedures in their application notes and datasheet. Additionally, engineers can use simulation tools and models provided by Analog Devices to optimize the biasing and tuning for their specific application.
  • The HMC438MS8GTR has undergone rigorous reliability and qualification tests, including temperature cycling, humidity testing, and mechanical stress testing, as per Analog Devices' internal standards and industry standards such as JEDEC and MIL-STD. The results of these tests are available upon request.
  • Analog Devices provides guidelines for EMC and EMI compliance in their application notes and datasheet. Engineers should follow these guidelines and take additional measures such as shielding, filtering, and layout optimization to ensure compliance with relevant EMC and EMI standards.
  • Analog Devices recommends following standard ESD handling and storage procedures, including storing the devices in anti-static packaging, handling them with ESD-protected tools, and avoiding exposure to moisture and extreme temperatures.
