HMC439QS16GE - Analog Devices

Description: HMC439QS16GE, Phase Frequency Detector 1.3GHz

Download HMC439QS16GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

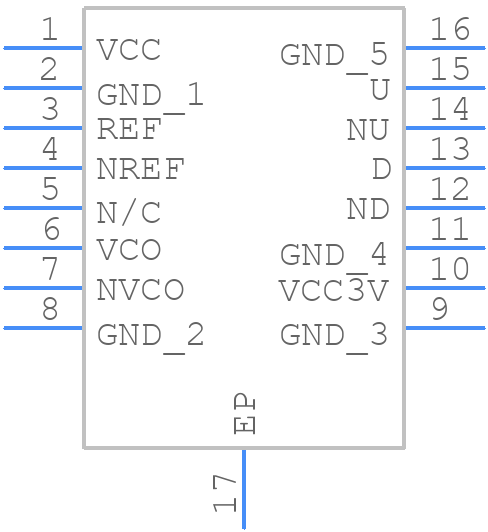

Symbol
HMC439QS16GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC439QS16GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC439QS16GE
click to zoom
3D Models
HMC439QS16GE - Analog Devices - 3D model - Small Outline Packages - HMC439QS16GE
click to zoom

HMC439QS16GE Details

  • Manufacturer Part Number:

    HMC439QS16GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HRC-16-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    13 dBm

  • Input Power-Min (CW):

    -10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    1300 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    PHASE DETECTOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC439QS16GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a pi-filter to reduce EMI.
  • Ensure the Vcc and Vee pins are decoupled with 100nF capacitors to ground. Use a voltage regulator to maintain a stable voltage supply. Bias the device with a voltage divider or a voltage reference to set the desired operating point.
  • The maximum power handling capability of the HMC439QS16GE is 1W. Exceeding this limit may cause the device to overheat or fail. Ensure proper heat sinking and thermal management to prevent overheating.
  • Use a spectrum analyzer to check for spurious signals or harmonics. Verify the device is properly biased and the input/output impedances are matched. Check for thermal issues and ensure proper heat sinking. Consult the datasheet and application notes for troubleshooting guides.
  • No, the HMC439QS16GE is not designed for switching power supply applications. It is a high-frequency amplifier designed for RF and microwave applications. Using it in a switching power supply application may cause the device to fail or malfunction.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC439QS16GE Overview

Use the download button to access the HMC439QS16GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC43, or try a keyword search, such as RF/Microwave Detectors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
