HMC439QS16GETR - Analog Devices

Description: RF Detector dig Phase-freq Detector , 0.01 - 1.3 GHz

Download HMC439QS16GETR Model

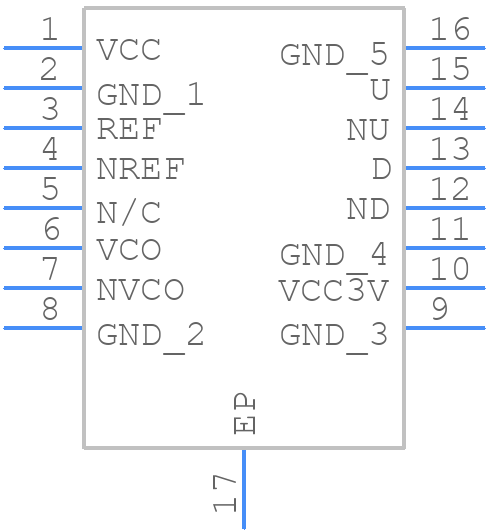

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC439QS16GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 3
click to zoom
3D Models
HMC439QS16GETR - Analog Devices  - 3D model - Small Outline Packages - 3
click to zoom

HMC439QS16GETR Details

  • Manufacturer Part Number:

    HMC439QS16GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HRC-16-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    13 dBm

  • Input Power-Min (CW):

    -10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    1300 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    PHASE DETECTOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC439QS16GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation by using a heat sink and thermal interface material.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling. Add a Pi-filter or a ferrite bead in series with the power supply lines to reduce noise and EMI.
  • Use a 3-wire SPI interface for control and configuration. Ensure proper signal termination and use a clock frequency of 10-20 MHz for optimal performance.
  • Use a shielded enclosure, ensure good grounding, and use EMI filters or ferrite beads on I/O lines. Follow proper PCB layout and routing guidelines to minimize radiation and susceptibility.
  • Use a vector signal analyzer or a spectrum analyzer to measure frequency response and spectral purity. Ensure proper calibration and use a 50-ohm termination for accurate measurements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC439QS16GETR Overview

Use the download button to access the HMC439QS16GETR schematic symbol, PCB footprint, and 3D model.
