HMC440QS16GE - Analog Devices

Description: Analog Devices Hittite HMC440QS16GE, PLL Circuit, 1300MHz, 16-Pin QSOP

Download HMC440QS16GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

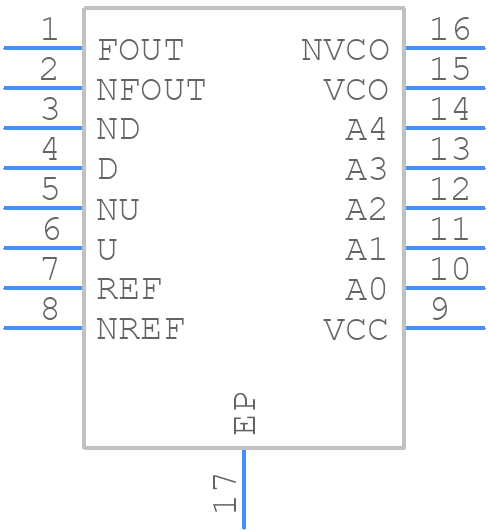

HMC440QS16GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC440QS16GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC413QS16GE
click to zoom
3D Models
HMC440QS16GE - Analog Devices - 3D model - Small Outline Packages - HMC413QS16GE
click to zoom

HMC440QS16GE Details

  • Manufacturer Part Number:

    HMC440QS16GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HRC-16-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    266 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

HMC440QS16GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from each other.
  • The device requires a single 5V supply voltage, and the VCC pin should be decoupled with a 0.1uF capacitor to ground. The bias voltage (VBIAS) should be set to 2.5V, and the VREF pin should be connected to a 1.25V reference voltage.
  • The HMC440QS16GE can operate up to 16 Gbps, but the maximum operating frequency depends on the specific application and the quality of the signal. In general, the device can operate up to 12.5 Gbps with a PRBS31 pattern.
  • Check the power supply voltage and decoupling, ensure the device is properly biased, and verify the input signal quality. Use an oscilloscope to check the output signal and verify it meets the required specifications.
  • The device has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. A heat sink or thermal interface material can be used to improve heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC440QS16GE Overview

Use the download button to access the HMC440QS16GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC44, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
