HMC441LM1 - Analog Devices

Description: RF Amplifier Medium pow amp SMT, 7.0 - 15.5 GHz

Download HMC441LM1 Model

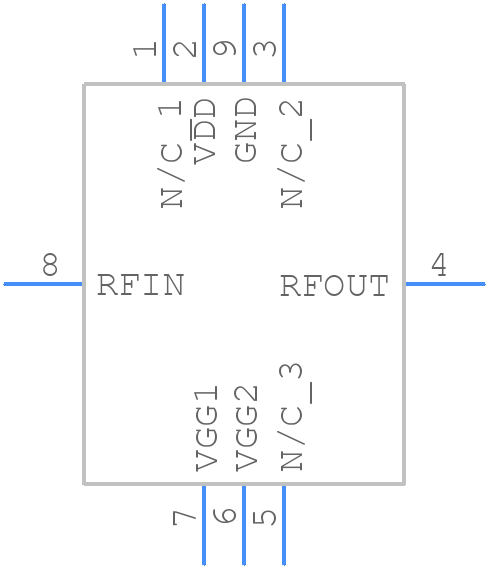

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC441LM1 - Analog Devices PCB footprint - Other - Other - HMC441LM1-6
click to zoom
3D Models
HMC441LM1 - Analog Devices  - 3D model - Other - HMC441LM1-6
click to zoom

HMC441LM1 Details

  • Manufacturer Part Number:

    HMC441LM1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, LEADLESS, ROHS COMPLIANT, PLASTIC, SMT, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    CE-8-1

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    11 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    15500 MHz

  • Operating Frequency-Min:

    7000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC8,.2SQ,40

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    115 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

HMC441LM1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • Use a low noise voltage regulator, decouple the power supply with a 10uF capacitor, and add a 100nF capacitor between the VCC and GND pins. Also, ensure the PCB layout is optimized for low noise.
  • The HMC441LM1 can operate up to 6 GHz, but the optimal frequency range is between 2 GHz to 4 GHz for best performance.
  • Use a 3-wire SPI interface to control the HMC441LM1. The microcontroller should provide a clock signal, a chip select signal, and a data signal. Ensure the microcontroller's voltage level is compatible with the HMC441LM1's voltage range.
  • The HMC441LM1 has a typical power consumption of 350mA at 3.3V supply voltage. However, this can vary depending on the operating frequency and mode.
