HMC441LP3 footprint, schematic symbol and 3D model by Analog Devices

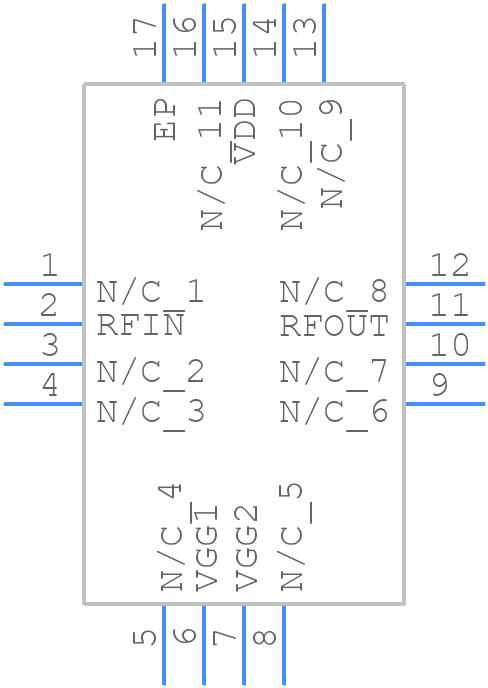

Symbol

click to zoom

PCB Footprints

HMC441LP3 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN_16-

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC441LP3
Part Number HMC441LP3
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN_16-
Released Date May 5, 2026
Last Modified Date May 5, 2026 8:55 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC441LP3 Details

Manufacturer Part Number:
HMC441LP3
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Active
Package Description:
QFN-16
Pin Count:
16
Manufacturer Package Code:
HCP-16-3
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
10 dB
Input Power-Max (CW):
15 dBm
JESD-609 Code:
e0
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
16
Operating Frequency-Max:
13500 MHz
Operating Frequency-Min:
6500 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC16,.12SQ,20
Power Supplies:
5 V
RF/Microwave Device Type:
WIDE BAND LOW POWER
Supply Current-Max:
115 mA
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Tin/Lead (Sn/Pb)

HMC441LP3 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
The HMC441LP3 requires a bias voltage of 5V ± 0.5V. Ensure the bias voltage is well-regulated and decoupled with a 10uF capacitor to minimize noise and ripple.
The HMC441LP3 can handle up to 1W of RF power. Exceeding this limit may cause damage to the device or affect its performance.
Use the device's internal matching network and adjust the external matching components (L1, L2, C1, and C2) to optimize the device's performance for the desired frequency band.
The recommended operating temperature range for the HMC441LP3 is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.

Trust Checks

Community Provided

System Verified

Community Approved

HMC441LP3 Overview

Use the download button to access the HMC441LP3 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC44, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
