HMC441LP3ETR - Analog Devices

Description: RF Amp Single Power Amp 13.5GHz 6V 16-Pin QFN EP T/R

Download HMC441LP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

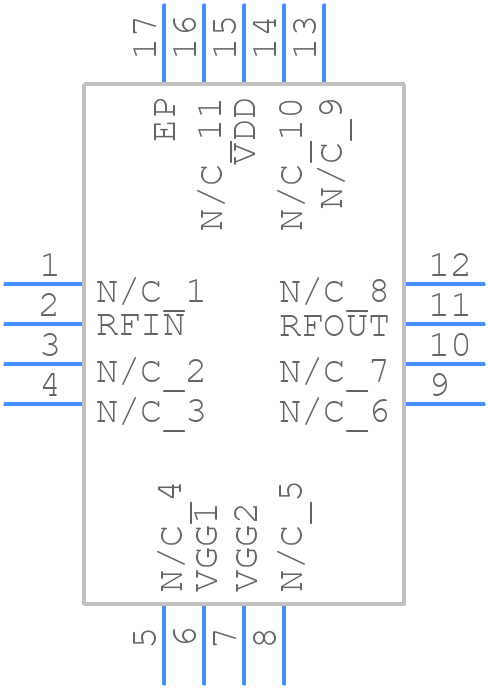

HMC441LP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC441LP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC344LP3E
click to zoom
3D Models
HMC441LP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - HMC344LP3E
click to zoom

HMC441LP3ETR Details

  • Manufacturer Part Number:

    HMC441LP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 1 MM HEIGHT, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    13500 MHz

  • Operating Frequency-Min:

    6500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    115 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC441LP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC441LP3ETR requires a single 3.3V or 5V power supply. Ensure the voltage regulator is stable and has low noise. Decouple the power pins with 10uF and 100nF capacitors.
  • The HMC441LP3ETR can operate up to 6 GHz, but the maximum frequency depends on the specific application and PCB layout. Consult the datasheet and application notes for more information.
  • Use a low-noise voltage regulator, decouple the power pins, and keep the signal traces short and shielded. Also, ensure the PCB is well-grounded and has minimal electromagnetic interference (EMI).
  • The HMC441LP3ETR is rated for operation from -40°C to 85°C. However, high temperatures can affect its performance and reliability. Consult the datasheet and application notes for more information on thermal management.
