HMC445LP4ETR - Analog Devices

Description: x16 Active Multiplier SMT, 9.9 to 11.2 GHz Fout

Download HMC445LP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

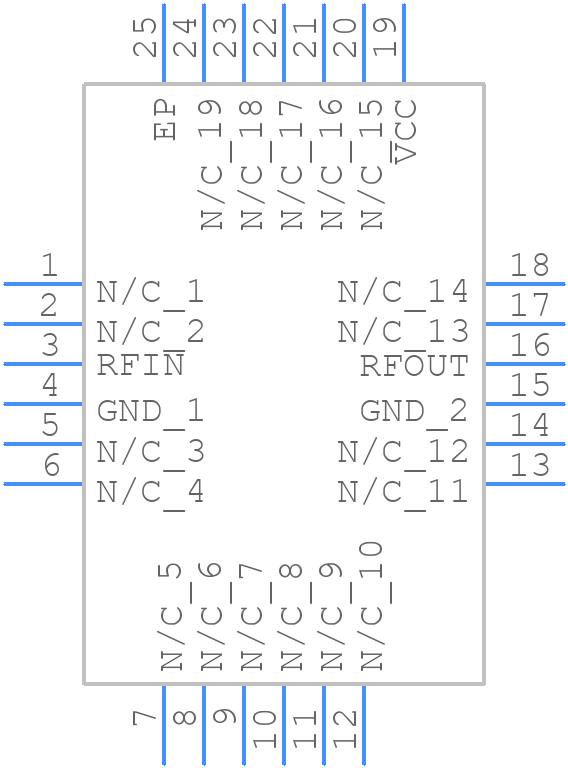

HMC445LP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC445LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4x4 mm SMT-1
click to zoom

HMC445LP4ETR Details

  • Manufacturer Part Number:

    HMC445LP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    11000 MHz

  • Operating Frequency-Min:

    9900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    FREQUENCY QUADRUPLER

  • Supply Current-Max:

    104 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

HMC445LP4ETR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC445LP4ETR can be found in the application note AN-1369 from Analog Devices Inc. It provides guidelines for PCB design, thermal management, and assembly to ensure optimal performance and reliability.
  • The biasing and tuning of the HMC445LP4ETR can be optimized using the Analog Devices Inc. simulation tools such as ADIsimPLL or ADIsimRF. These tools allow you to model and simulate the device's performance under various operating conditions and optimize the biasing and tuning for your specific application.
  • The recommended test and measurement equipment and procedures for characterizing the HMC445LP4ETR can be found in the application note AN-1369 from Analog Devices Inc. It provides guidelines for testing and measuring the device's performance, including setup, calibration, and measurement procedures.
  • The HMC445LP4ETR is designed to operate in harsh environmental conditions, but to ensure reliability and ruggedness, it is recommended to follow the guidelines provided in the application note AN-1369 from Analog Devices Inc. This includes proper PCB design, thermal management, and assembly, as well as conformal coating and sealing to protect the device from moisture and contaminants.
  • The HMC445LP4ETR is a high-performance PLL synthesizer that can be used in a variety of applications, including wireless infrastructure, satellite communications, radar systems, and test and measurement equipment. It is particularly suitable for applications requiring high frequency accuracy, low phase noise, and fast switching times.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC445LP4ETR Overview

Use the download button to access the HMC445LP4ETR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC44, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
