HMC450QS16GETR - Analog Devices

Description: Power Amplifier SMT, 0.8 - 1.0 GHz

Download HMC450QS16GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

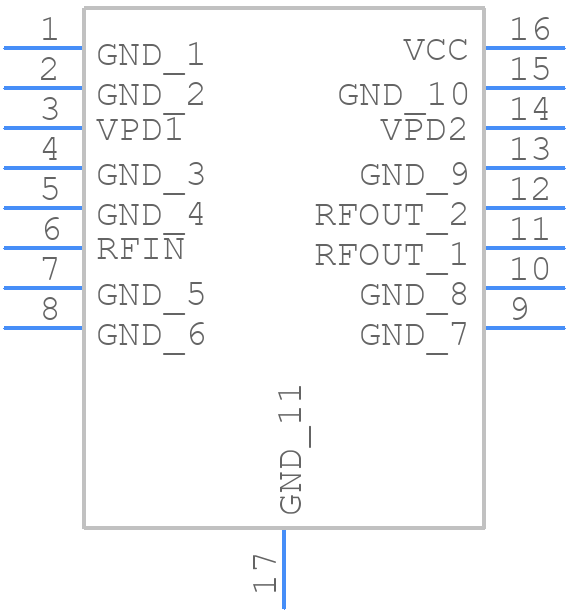

HMC450QS16GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC450QS16GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP_EP-1
click to zoom

HMC450QS16GETR Details

  • Manufacturer Part Number:

    HMC450QS16GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HRC-16-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    23 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Power Supplies:

    4,5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.58

HMC450QS16GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation to prevent overheating.
  • Use a combination of ceramic and electrolytic capacitors for decoupling, and consider adding a Pi-filter or a ferrite bead for EMI filtering.
  • Consult the datasheet for recommended voltage regulator settings. Typically, VCC = 3.3V, VDD = 1.2V, and VEE = -3.3V. Adjust according to your specific application.
  • Use differential signaling, keep signal traces short and away from noise sources, and consider adding shielding or a Faraday cage to minimize EMI.
  • The device has a maximum junction temperature of 150°C. Derate the device's power consumption and operating frequency according to the thermal derating curve in the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC450QS16GETR Overview

Use the download button to access the HMC450QS16GETR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC45, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
