HMC453QS16GE - Analog Devices

Description: MMIC Amplifier CATV Amplifier 2200MHz Single 16-Pin QSOP T/R

Download HMC453QS16GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

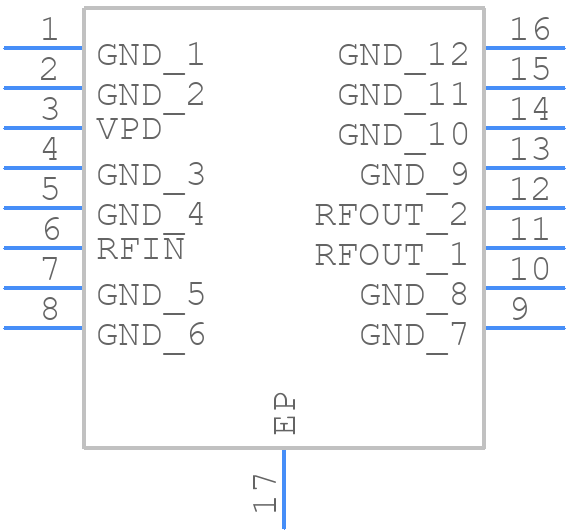

HMC453QS16GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC453QS16GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin QSOP
click to zoom
3D Models
HMC453QS16GE - Analog Devices - 3D model - Small Outline Packages - 16-Pin QSOP
click to zoom

HMC453QS16GE Details

  • Manufacturer Part Number:

    HMC453QS16GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, MINIATURE, PLASTIC, SMT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HRC-16-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    6 dB

  • Input Power-Max (CW):

    32 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC453QS16GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC453QS16GE requires a single +5V supply. Ensure the voltage supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The bias voltage (Vbias) should be set to 2.5V, which can be generated using a voltage divider or a voltage reference.
  • The maximum input power that the HMC453QS16GE can handle is +10 dBm. Exceeding this limit may cause compression or damage to the device.
  • The HMC453QS16GE is a broadband amplifier, but it can be optimized for a specific frequency band by adjusting the input and output matching networks. Use a network analyzer to optimize the impedance matching for the desired frequency band.
  • The recommended operating temperature range for the HMC453QS16GE is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.
