HMC453QS16GETR - Analog Devices

Description: RF Amplifier IC CDMA, GSM, WCDMA 400MHz ~ 2.2GHz 16-QSOP-EP

Download HMC453QS16GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

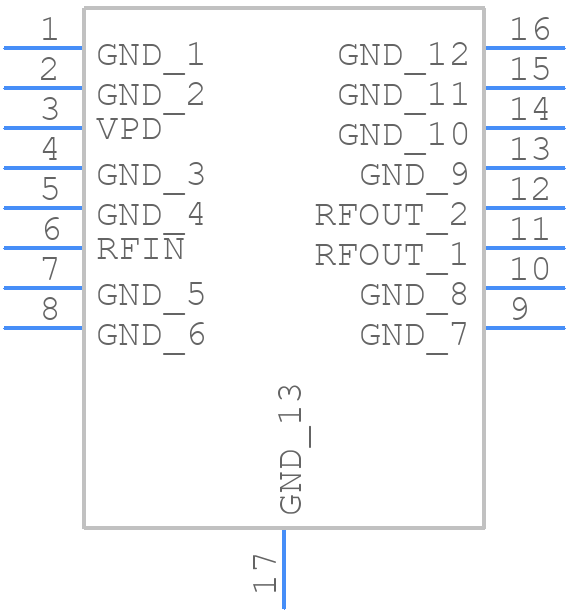

HMC453QS16GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC453QS16GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 lead QSOP
click to zoom
3D Models
HMC453QS16GETR - Analog Devices - 3D model - Small Outline Packages - 16 lead QSOP
click to zoom

HMC453QS16GETR Details

  • Manufacturer Part Number:

    HMC453QS16GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HRC-16-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    6 dB

  • Input Power-Max (CW):

    32 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC453QS16GETR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC453QS16GETR can be found in the 'PCB Layout and Thermal Management' section of the Analog Devices' application note AN-1369. It provides guidelines for minimizing thermal resistance, reducing electromagnetic interference, and optimizing signal integrity.
  • To optimize the output power and efficiency of the HMC453QS16GETR, it is recommended to follow the 'Output Power and Efficiency Optimization' guidelines in the datasheet. This includes selecting the appropriate output impedance, optimizing the biasing conditions, and using the correct output matching network.
  • The recommended test and measurement equipment for characterizing the HMC453QS16GETR include a vector network analyzer (VNA), a spectrum analyzer, and a signal generator. These tools can be used to measure the device's S-parameters, output power, and spectral purity.
  • To ensure the reliability and ruggedness of the HMC453QS16GETR in harsh environments, it is recommended to follow the 'Reliability and Ruggedness' guidelines in the datasheet. This includes operating the device within the recommended temperature range, using the correct packaging and handling procedures, and following the recommended storage and shipping guidelines.
  • The HMC453QS16GETR can be used in a variety of applications beyond the typical use cases mentioned in the datasheet, including satellite communications, radar systems, and electronic warfare systems. Its high output power, high gain, and low noise figure make it an ideal component for these applications.
