- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC455LP3E
- Part Number HMC455LP3E
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HMC455LP3E
- Released Date Aug 20, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC455LP3E Details
-
Manufacturer Part Number:
HMC455LP3E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, QFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
HCP-16-3
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
HMC455LP3E Frequently Asked Questions (FAQs)
-
A good PCB layout for the HMC455LP3E involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the bypass capacitors. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing high-frequency signals near the device's sensitive pins.
-
The optimal biasing of the HMC455LP3E depends on the specific application and the desired performance. In general, it's recommended to follow the biasing scheme shown in the datasheet, but adjustments may be needed to optimize the device's performance for the specific application. It's recommended to consult with an RF design expert or to use simulation tools to optimize the biasing.
-
The maximum power handling of the HMC455LP3E is not explicitly stated in the datasheet, but it's generally recommended to keep the input power below 10 dBm to avoid compression and distortion. However, the actual power handling may vary depending on the specific application and the device's operating conditions.
-
Common issues with the HMC455LP3E can often be troubleshooted by checking the PCB layout, the biasing scheme, and the input/output matching networks. It's also recommended to use simulation tools to model the device's behavior and to identify potential issues. In some cases, it may be necessary to consult with an RF design expert or to contact Analog Devices' technical support.
-
The HMC455LP3E is a high-power device that can generate significant heat, especially at high frequencies. It's recommended to use a heat sink or a thermal pad to dissipate the heat, and to ensure good airflow around the device. The maximum junction temperature of the device is 150°C, and it's recommended to keep the operating temperature below 125°C to ensure reliable operation.
Trust Checks
Community Provided
System Verified
Community Approved
HMC455LP3E Overview

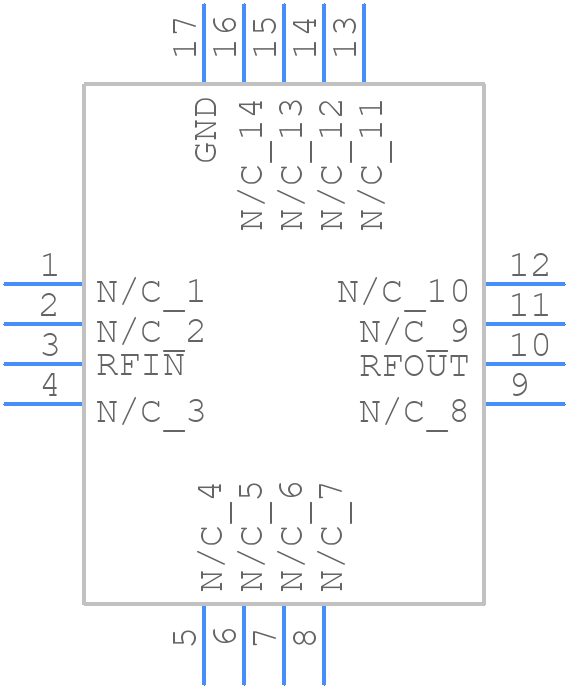

Use the download button to access the HMC455LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC45,
or try a keyword search, such as RF/Microwave Amplifiers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
