HMC457QS16GE - Analog Devices

Description: RF Amplifier 1 Watt pow amp SMT, 1.7 - 2.2 GHz

Download HMC457QS16GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

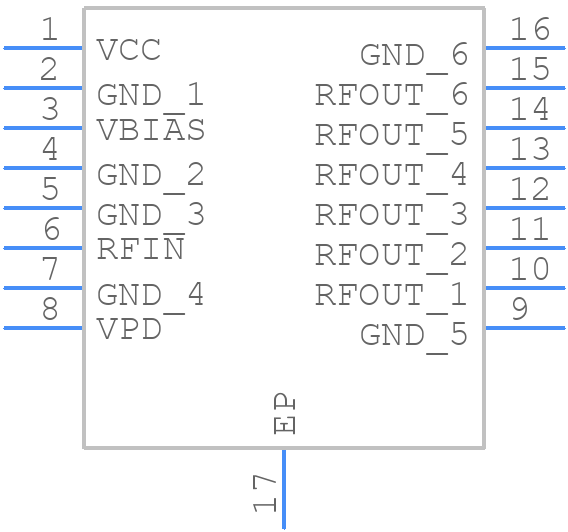

HMC457QS16GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC457QS16GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-QSOP-EP
click to zoom
3D Models
HMC457QS16GE - Analog Devices - 3D model - Small Outline Packages - 16-QSOP-EP
click to zoom

HMC457QS16GE Details

  • Manufacturer Part Number:

    HMC457QS16GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, MINIATURE, PLASTIC, SMT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HRC-16-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    22 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    1700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    NARROW BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC457QS16GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation by using a heat sink and thermal interface material.
  • Use a low-noise power supply with a high-quality decoupling network consisting of a 10uF capacitor in parallel with a 100nF capacitor, placed close to the device's power pins.
  • Typically, VCTL should be set to 3.3V, and VREF should be set to 1.2V. However, consult the datasheet and application notes for specific recommendations based on your application.
  • Use differential signaling, keep signal traces short and away from noise sources, and use shielding or guard rings to minimize EMI. Also, ensure that the device's output is properly terminated.
  • The device has a maximum junction temperature of 150°C. Derate the device's power dissipation by 2.5mW/°C above 25°C to ensure reliable operation.
