HMC462LP5 - Analog Devices

Description: RF Amp Single LNA 20GHz 9V 32-Pin QFN EP T/R

Download HMC462LP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

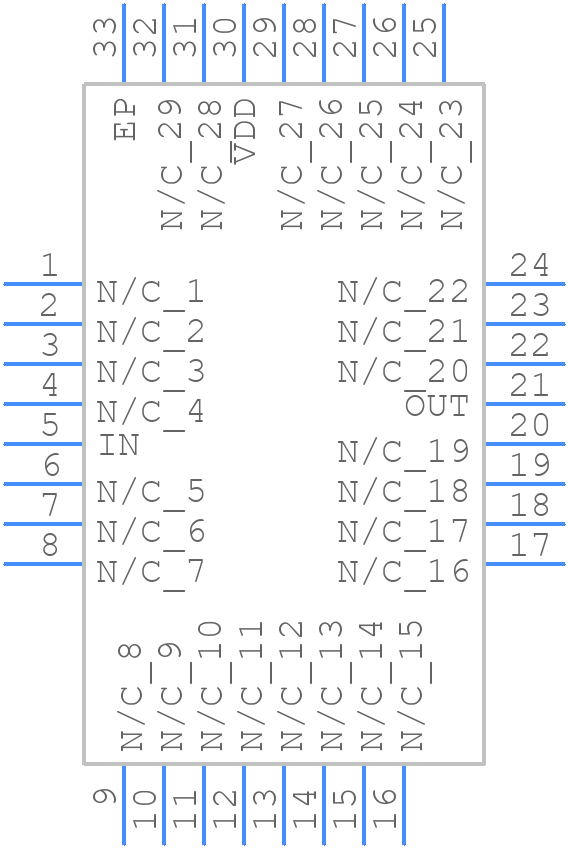

HMC462LP5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC462LP5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD 5mmX5mm
click to zoom
3D Models
HMC462LP5 - Analog Devices - 3D model - Quad Flat No-Lead - 32 LEAD 5mmX5mm
click to zoom

HMC462LP5 Details

  • Manufacturer Part Number:

    HMC462LP5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEADLESS , PLASTIC, SMT, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10 dB

  • Input Power-Max (CW):

    18 dBm

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

HMC462LP5 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC462LP5 requires a single +5V power supply. Ensure the voltage supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The bias voltage (Vbias) should be set to 2.5V using a voltage divider or a dedicated voltage reference.
  • The HMC462LP5 can handle input powers up to +15dBm. Exceeding this limit may cause compression or damage to the device.
  • To minimize NF, ensure the input is properly matched to 50 ohms, and the device is operated at the recommended bias voltage and current. Additionally, use a low-noise voltage regulator and decouple the power supply lines.
  • Yes, the HMC462LP5 can be used in a push-pull configuration to improve linearity and reduce distortion. However, this requires careful design and layout to ensure proper balancing and matching of the two amplifiers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC462LP5 Overview

Use the download button to access the HMC462LP5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC46, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
