HMC462LP5ETR - Analog Devices

Description: Noise Figure: 2.5 dB @ 10 GHz Gain: 13 dB P1dB Output Power: +14.5 dBm @ 10 GHz Self-Biased: +5V @ 66mA 50 Ohm Matched Input/Output 25 mm 2 Leadless SMT Package

Download HMC462LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

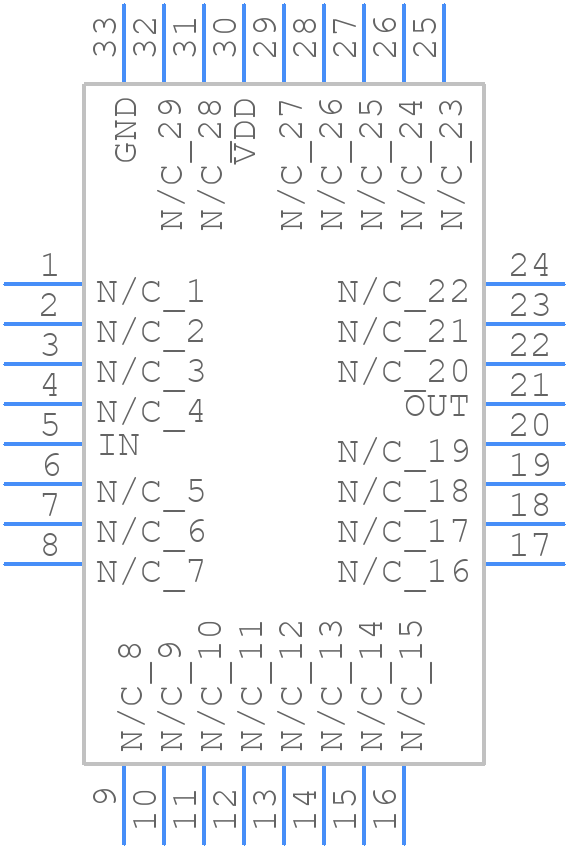

HMC462LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC462LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-QFN.
click to zoom
3D Models
HMC462LP5ETR - Analog Devices - 3D model - Quad Flat No-Lead - 32-QFN.
click to zoom

HMC462LP5ETR Details

  • Manufacturer Part Number:

    HMC462LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    84 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC462LP5ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the bias voltage is set to the recommended 5V. Also, ensure the input and output impedances are matched to minimize reflections.
  • The HMC462LP5ETR can handle up to 1W of power, but it's recommended to derate the power handling to 0.5W to ensure reliable operation.
  • Use a low-noise voltage regulator to power the device, and ensure the input and output impedances are matched. Also, use a high-quality PCB with a solid ground plane to minimize noise coupling.
  • The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 125°C with reduced performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC462LP5ETR Overview

Use the download button to access the HMC462LP5ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC46, or try a keyword search, such as RF/Microwave Amplifiers
