HMC465LP5ETR footprint, schematic symbol and 3D model by Analog Devices

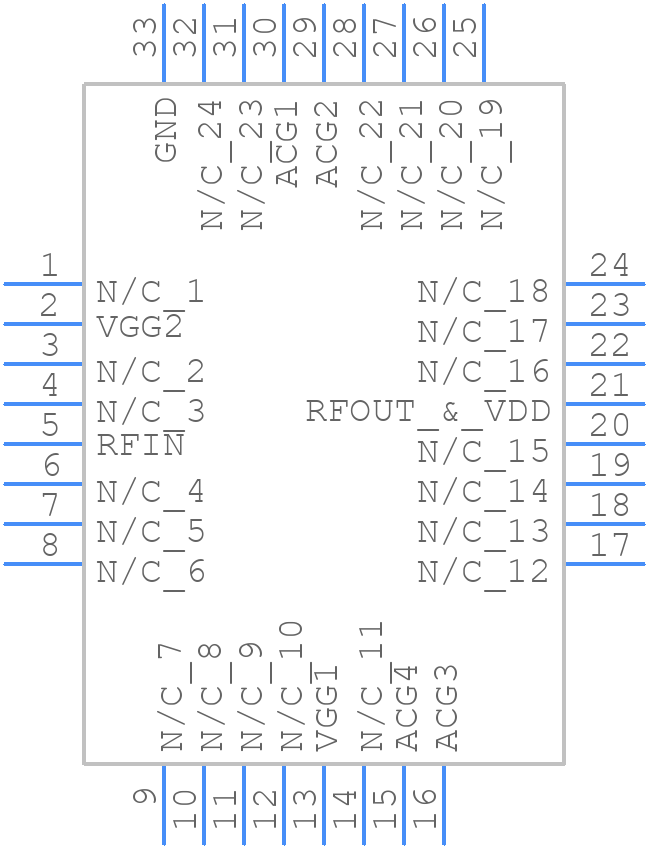

Symbol

click to zoom

PCB Footprints

HMC465LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32- 1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC465LP5ETR
Part Number HMC465LP5ETR
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - HCP-32- 1
Released Date Apr 18, 2023
Last Modified Date Sep 18, 2025 8:50 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC465LP5ETR Details

Manufacturer Part Number:
HMC465LP5ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
5 X 5 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, QFN-32
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
9.5 dB
Input Power-Max (CW):
23 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
32
Operating Frequency-Max:
20000 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC32,.2SQ,20
Power Supplies:
8 V
RF/Microwave Device Type:
WIDE BAND LOW POWER
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Matte Tin (Sn)

HMC465LP5ETR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
Ensure the Vcc and Vee pins are decoupled with 100nF capacitors and the bias voltage is set to the recommended 5V. Also, ensure the input and output impedances are matched to minimize reflections.
The HMC465LP5ETR can handle up to 1W of power. However, it's recommended to derate the power handling to 0.5W to ensure reliable operation and minimize thermal issues.
Check for proper PCB layout, decoupling, and biasing. Ensure the input and output impedances are matched, and the device is operated within the recommended frequency range. Use a spectrum analyzer to identify any unwanted oscillations or spurious signals.
Yes, the HMC465LP5ETR can be used in a push-pull configuration. However, ensure the output stages are properly biased and matched to minimize even-order distortion and ensure stable operation.

Trust Checks

Community Provided

System Verified

Community Approved

HMC465LP5ETR Overview

Use the download button to access the HMC465LP5ETR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC46, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
