HMC468ALP3ETR - Analog Devices

Description: RF Attenuators 7dB 0 Hz ~ 6 GHz 50 Ohms 657mW 16-VFQFN Exposed Pad

Download HMC468ALP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

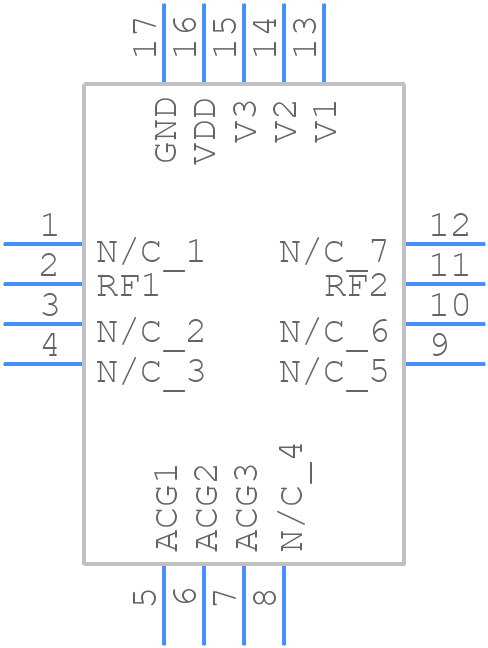

HMC468ALP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC468ALP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-VFQFN_2023
click to zoom
3D Models
HMC468ALP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - 16-VFQFN_2023
click to zoom

HMC468ALP3ETR Details

  • Manufacturer Part Number:

    HMC468ALP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-50

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Attenuation-Nom:

    7 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.4 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Supply Current-Max:

    1.8 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.22

HMC468ALP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC468ALP3ETR requires a single positive supply voltage (Vcc) between 3.3V to 5V. Ensure the voltage supply is clean and regulated. A decoupling capacitor (e.g., 100nF) should be placed close to the device.
  • The HMC468ALP3ETR can handle up to 1W of power. However, it's recommended to derate the power handling to 0.5W to ensure reliable operation and minimize thermal issues.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the device is properly biased and the power supply is clean. Use a spectrum analyzer to identify any unwanted signals or harmonics. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the HMC468ALP3ETR can be used in a push-pull configuration. However, ensure the device is properly biased and the output stage is designed to handle the increased current. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC468ALP3ETR Overview

Use the download button to access the HMC468ALP3ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC46, or try a keyword search, such as RF/Microwave Attenuators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
