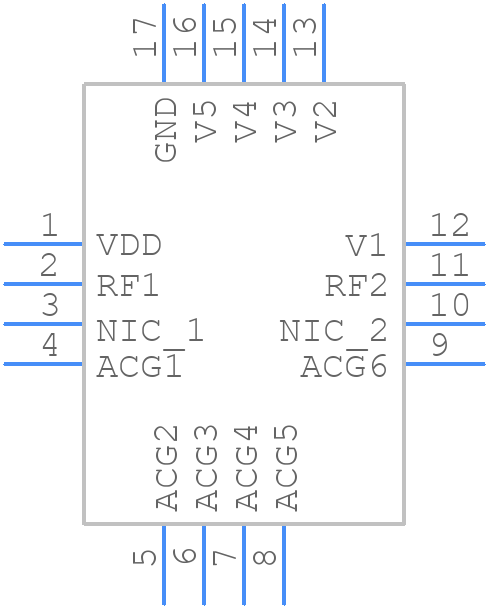

HMC470ATCPZ-EP-PT - Analog Devices

HMC470ATCPZ-EP-PT Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for optimal performance?
  Analog Devices provides a recommended PCB layout and thermal management guide in their application note AN-1369, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal performance and reliability.
• How do I troubleshoot common issues such as output power droop or frequency pulling?
  Analog Devices provides a troubleshooting guide in their application note AN-1370, which covers common issues and their solutions, including output power droop, frequency pulling, and spurious emissions.
• What are the recommended tuning procedures for optimal performance?
  The recommended tuning procedures for the HMC470ATCPZ-EP-PT are outlined in the device's datasheet and application notes. These procedures include adjusting the input and output matching networks, biasing, and tuning for optimal output power and efficiency.
• How do I ensure electromagnetic compatibility (EMC) and electromagnetic interference (EMI) compliance?
  To ensure EMC and EMI compliance, it is recommended to follow the guidelines outlined in Analog Devices' application note AN-1368, which includes design considerations for shielding, grounding, and filtering to minimize electromagnetic emissions and susceptibility.
• What are the reliability and qualification tests that the device has undergone?
  The HMC470ATCPZ-EP-PT has undergone rigorous reliability and qualification tests, including temperature cycling, humidity testing, and mechanical stress testing, as outlined in Analog Devices' reliability report. The device is also qualified to various industry standards, including MIL-STD-883 and AEC-Q100.
