HMC470LP3E - Analog Devices

Description: Analog Devices Hittite HMC470LP3E, Variable Attenuator, 31dB, 3GHz, Maximum of 5 V 16-Pin SMT

Download HMC470LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

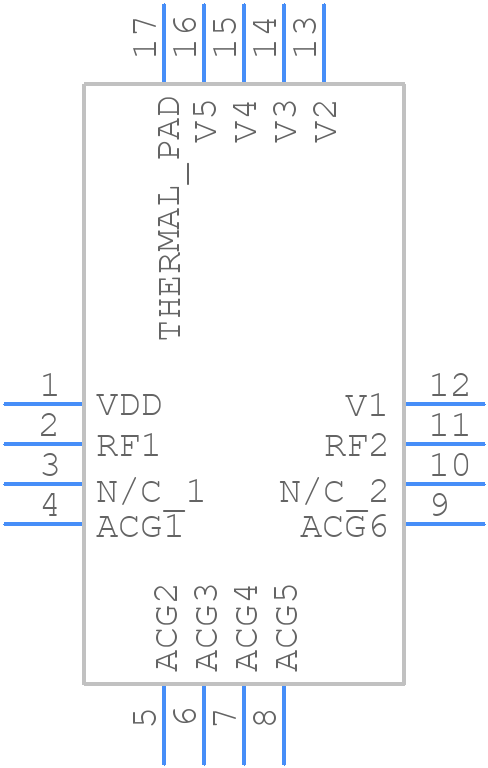

Symbol
HMC470LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC470LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC470
click to zoom
3D Models
HMC470LP3E - Analog Devices - 3D model - Quad Flat No-Lead - HMC470
click to zoom

HMC470LP3E Details

  • Manufacturer Part Number:

    HMC470LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.33

HMC470LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC470LP3E requires a single +3.3V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA.
  • The HMC470LP3E can operate up to 6 GHz, but the optimal frequency range is between 2 GHz and 4 GHz for best performance.
  • The HMC470LP3E has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. Ensure the interface voltage is compatible with the microcontroller or FPGA.
  • The typical current consumption of the HMC470LP3E is 10mA, but it can vary depending on the operating frequency and bias conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC470LP3E Overview

Use the download button to access the HMC470LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC47, or try a keyword search, such as RF/Microwave Attenuators
