HMC493LP3E - Analog Devices

Description: Prescaler InGaP HBT Divide-by-4 SMT DC - 18 GHz

Download HMC493LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

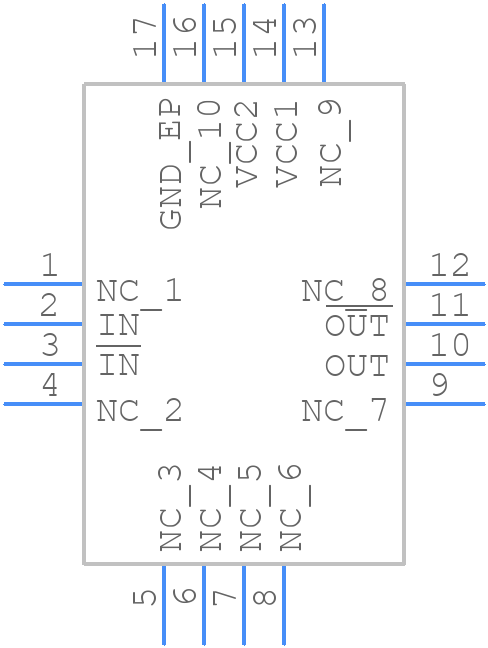

HMC493LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC493LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3x3 mm QFN SMT Package
click to zoom
3D Models
HMC493LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 3x3 mm QFN SMT Package
click to zoom

HMC493LP3E Details

  • Manufacturer Part Number:

    HMC493LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Family:

    493

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    PRESCALER

  • Max Frequency@Nom-Sup:

    18000000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

  • fmax-Min:

    18000 MHz

HMC493LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A microstrip or coplanar waveguide transmission line should be used to connect the device to the antenna.
  • The device requires a single positive supply voltage (Vcc) of 3.3V to 5V. A voltage regulator or a low-dropout regulator (LDO) should be used to regulate the supply voltage. The bias voltage (Vbias) should be set to 1.5V to 3.5V, and the current limit resistor (Rlim) should be chosen to limit the current to 10mA to 20mA.
  • A pi-network or a T-network can be used to match the device to a 50-ohm system. The network should be designed to provide a conjugate match to the device's input impedance. The values of the matching components can be determined using a Smith chart or a network analyzer.
  • The noise figure can be reduced by optimizing the bias voltage and current, using a low-noise amplifier or a low-noise voltage regulator, and minimizing the thermal noise by using a low-ESR capacitor and a low-resistance transmission line.
  • The maximum power handling of the HMC493LP3E is 23 dBm. Exceeding this power level can cause damage to the device or affect its performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC493LP3E Overview

Use the download button to access the HMC493LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC49, or try a keyword search, such as Prescaler/Multivibrators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
