HMC500LP3ETR - Analog Devices

Description: HBT Vector Modulator SMT, 1.8 - 2.2 GHz

Download HMC500LP3ETR Model

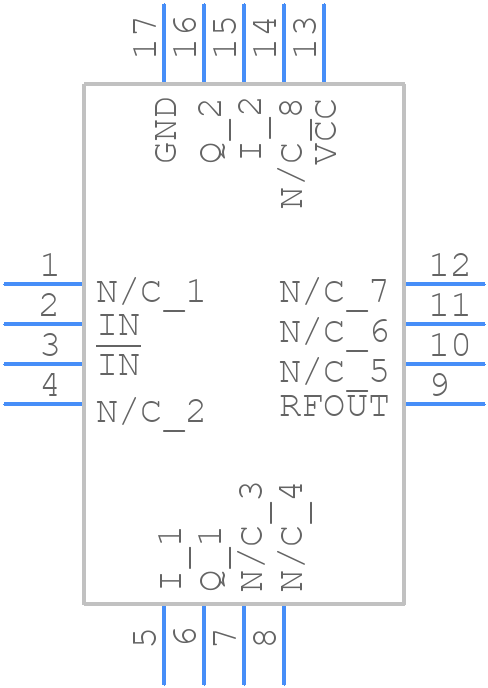

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC500LP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1-2
click to zoom

HMC500LP3ETR Details

  • Manufacturer Part Number:

    HMC500LP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    VECTOR

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    1800 MHz

  • RF/Microwave Device Type:

    MODULATOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.43

HMC500LP3ETR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC500LP3ETR can be found in the 'PCB Layout and Thermal Management' section of the ADI's application note AN-1369. It provides guidelines for optimal performance, including component placement, thermal vias, and heat sink design.
  • To optimize the output power and efficiency of the HMC500LP3ETR, it is recommended to follow the 'Output Power and Efficiency Optimization' section of the ADI's application note AN-1369. This includes adjusting the input power, output load, and biasing conditions to achieve the desired performance.
  • The recommended input and output matching networks for the HMC500LP3ETR can be found in the 'Input and Output Matching Networks' section of the ADI's application note AN-1369. These networks are designed to optimize the amplifier's performance and can be simulated using tools like ADIsimRF or Microwave Office.
  • To troubleshoot common issues with the HMC500LP3ETR, it is recommended to follow the 'Troubleshooting Guide' section of the ADI's application note AN-1369. This includes checking the PCB layout, component values, and biasing conditions, as well as using tools like a spectrum analyzer or oscilloscope to identify the root cause of the issue.
  • The HMC500LP3ETR has undergone various reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing. The details of these tests can be found in the 'Reliability and Qualification' section of the ADI's datasheet or in the 'Quality and Reliability' section of the ADI's website.
