HMC506LP4 - Analog Devices

Description: RF Amplifier IC VSAT 7.8GHz ~ 8.7GHz 24-QFN (4x4)

Download HMC506LP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

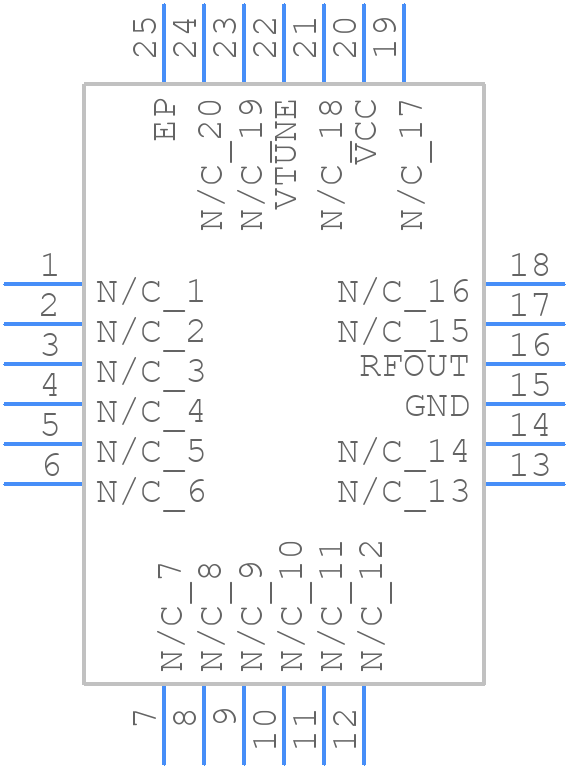

HMC506LP4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC506LP4 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC506LP4
click to zoom
3D Models
HMC506LP4 - Analog Devices - 3D model - Quad Flat No-Lead - HMC506LP4
click to zoom

HMC506LP4 Details

  • Manufacturer Part Number:

    HMC506LP4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-16-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e0

  • Operating Frequency-Max:

    8700 MHz

  • Operating Frequency-Min:

    7800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • VSWR-Max:

    2

HMC506LP4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC506LP4 requires a single 5V supply. Ensure the voltage supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC506LP4 can operate up to 6 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout.
  • Minimize the noise figure by using a low-noise voltage regulator, keeping the device away from noise sources, and using a high-quality PCB layout with proper grounding and shielding.
  • Yes, the HMC506LP4 can be used in a switching application, but it requires careful design and layout to minimize switching noise and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC506LP4 Overview

Use the download button to access the HMC506LP4 schematic symbol, PCB footprint, and 3D model.
