HMC507LP5 - Analog Devices

Description: VCO SMT with Fo/2, 6.65 - 7.65 GHz

Download HMC507LP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

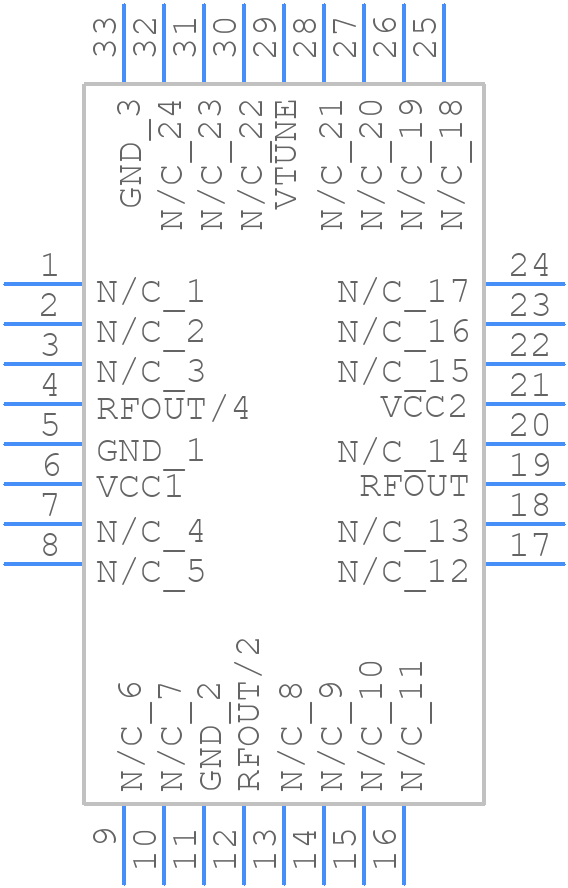

Symbol
HMC507LP5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC507LP5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.56
click to zoom

HMC507LP5 Details

  • Manufacturer Part Number:

    HMC507LP5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e0

  • Modulation Sensitivity:

    15 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    7650 MHz

  • Operating Frequency-Min:

    6650 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    11 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Phase Noise:

    -115 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    270 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC507LP5 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC507LP5 involves keeping the signal paths short, using a solid ground plane, and separating the analog and digital sections of the board. Additionally, it's recommended to use a 4-layer board with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and biasing circuitry as outlined in the datasheet. Additionally, ensure that the VCC and VEE pins are decoupled with 100nF capacitors to reduce noise and oscillations.
  • The HMC507LP5 can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for more information on frequency planning and layout considerations.
  • To reduce noise and spurious signals, ensure that the HMC507LP5 is properly shielded, and the PCB layout is optimized for minimal signal coupling. Additionally, use proper filtering and decoupling techniques, and consider using a shielded enclosure or metal can to reduce electromagnetic interference (EMI).
  • The HMC507LP5 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to use a heat sink or thermal pad to dissipate heat, and to keep the ambient temperature below 85°C. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC507LP5 Overview

Use the download button to access the HMC507LP5 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC50, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
