HMC507LP5E - Analog Devices

Description: Oscillator VCO 3325MHz to 3825MHz/ 6650MHz to 7650MHz 5V 32-Pin QFN EP SMD T/R

Download HMC507LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

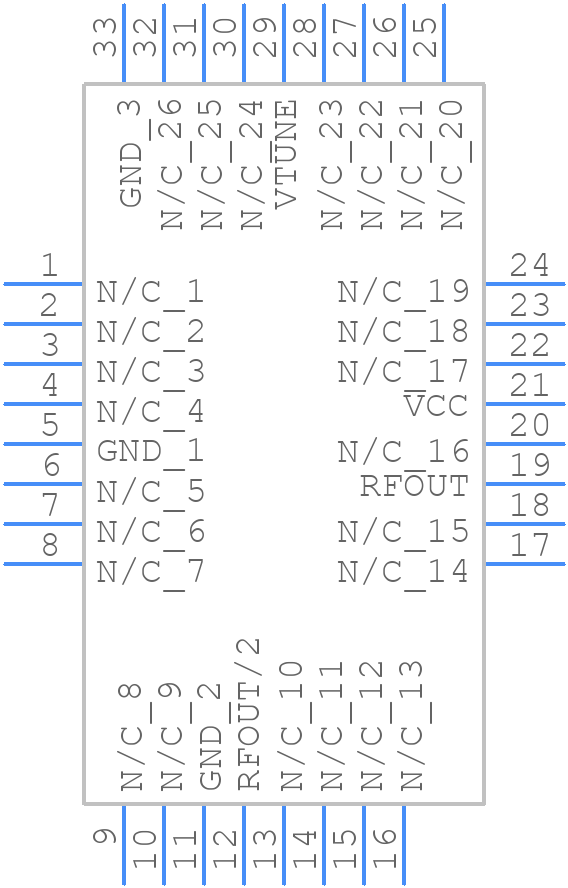

HMC507LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC507LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 Lead 5x5mm SMT_2022-1
click to zoom
3D Models
HMC507LP5E - Analog Devices - 3D model - Quad Flat No-Lead - 32 Lead 5x5mm SMT_2022-1
click to zoom

HMC507LP5E Details

  • Manufacturer Part Number:

    HMC507LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    15 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    7650 MHz

  • Operating Frequency-Min:

    6650 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    11 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Phase Noise:

    -115 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    270 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC507LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC507LP5E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA.
  • The HMC507LP5E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC507LP5E has a parallel interface. Use a microcontroller or FPGA with a parallel interface to communicate with the HMC507LP5E. Ensure the interface signals are properly terminated and matched to the PCB impedance.
  • The typical current consumption of the HMC507LP5E is 10mA, but this can vary depending on the operating frequency and the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC507LP5E Overview

Use the download button to access the HMC507LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC50, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
