HMC508LP5E - Analog Devices

Description: Analog Devices Hittite HMC508LP5E, Voltage Controlled Oscillator,

Download HMC508LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

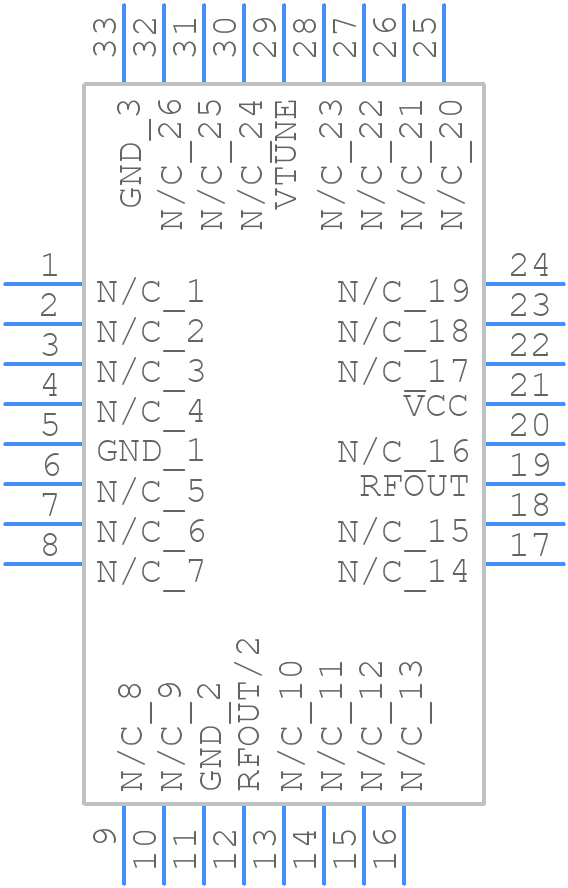

HMC508LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC508LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-32
click to zoom
3D Models
HMC508LP5E - Analog Devices - 3D model - Quad Flat No-Lead - QFN-32
click to zoom

HMC508LP5E Details

  • Manufacturer Part Number:

    HMC508LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    10 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    8200 MHz

  • Operating Frequency-Min:

    7300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    12 dBm

  • Phase Noise:

    -116 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    280 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC508LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC508LP5E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC508LP5E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 4 GHz for optimal performance.
  • To minimize the noise figure, ensure the input signal is properly matched to the device, and the output is properly terminated. Use a low-noise power supply, and decouple the power supply lines with 0.1uF and 10uF capacitors. Additionally, use a high-quality PCB material with low dielectric loss.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Ensure the input and output are properly matched to minimize reflections and optimize performance.
