HMC509LP5E - Analog Devices

Description: Analog Devices Hittite HMC509LP5E, VCO, 3.9 → 4.4 (Output 2) GHz, 7.8 → 8.8 (Output 1) GHz, 32-Pin QFN

Download HMC509LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

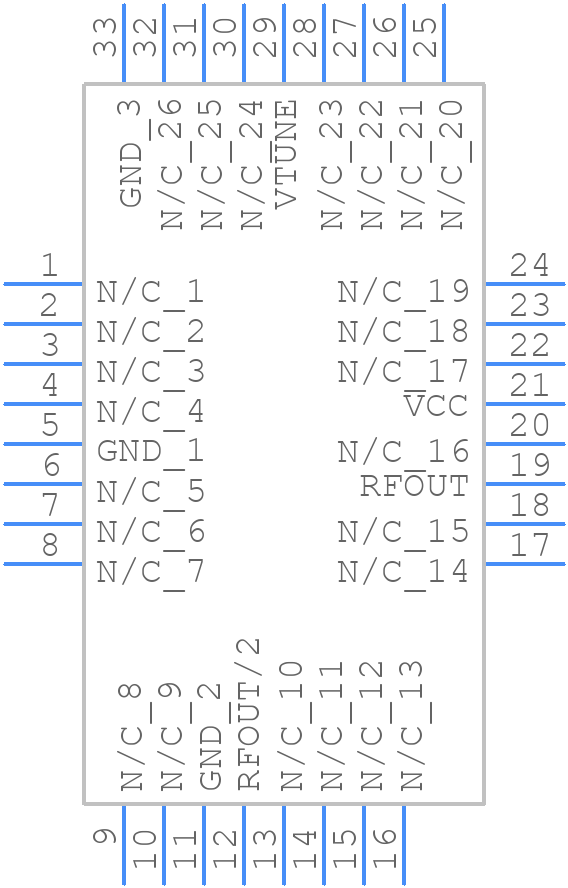

Symbol
HMC509LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC509LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32-ren2
click to zoom
3D Models
HMC509LP5E - Analog Devices - 3D model - Quad Flat No-Lead - QFN32-ren2
click to zoom

HMC509LP5E Details

  • Manufacturer Part Number:

    HMC509LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    10 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    8800 MHz

  • Operating Frequency-Min:

    7800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    10 dBm

  • Phase Noise:

    -115 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    270 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC509LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC509LP5E requires a single positive supply voltage (Vcc) between 3.3V and 5V. Ensure the voltage regulator is stable and decoupled with capacitors to minimize noise.
  • The HMC509LP5E can handle input powers up to +20 dBm. Exceeding this may cause damage to the device or affect its performance.
  • Optimize the input and output matching networks for the desired frequency band. Use a low-noise amplifier design and ensure the device is operated within its recommended operating conditions.
  • The recommended operating temperature range for the HMC509LP5E is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
