HMC509LP5ETR - Analog Devices

Description: 4.15GHz, 8.3GHz Center Frequency 2V ~ 13V Voltage Controlled Oscillator 7.5±2.5, 12.5±2.5 dBm 10 2nd Harmonic, Typ (dBc)

Download HMC509LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

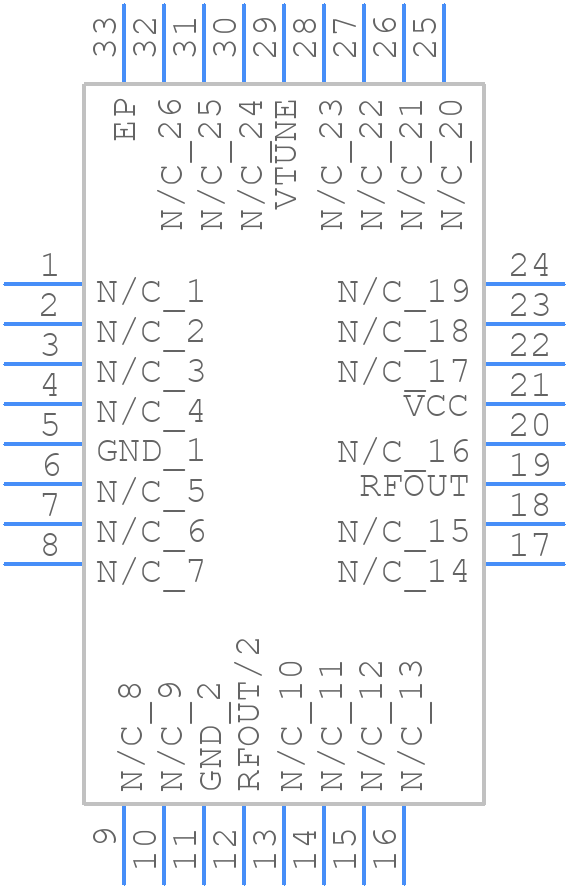

HMC509LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC509LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD 5mmX5mm
click to zoom
3D Models
HMC509LP5ETR - Analog Devices - 3D model - Quad Flat No-Lead - 32 LEAD 5mmX5mm
click to zoom

HMC509LP5ETR Details

  • Manufacturer Part Number:

    HMC509LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TAPE AND REEL

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    10 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    8800 MHz

  • Operating Frequency-Min:

    7800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    10 dBm

  • Phase Noise:

    -115 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    270 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC509LP5ETR Frequently Asked Questions (FAQs)

  • A good PCB layout should ensure minimal signal path lengths, minimal impedance mismatch, and adequate thermal management. A thermal pad on the bottom of the package should be connected to a solid copper plane on the PCB to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal performance.
  • Optimizing the input and output matching networks requires careful selection of component values and layout. Use a network analyzer to measure the device's input and output impedance, and then design the matching networks using a Smith chart or simulation software. Consider using a pi-network or a T-network topology for the matching circuits.
  • Operate the device within the recommended operating conditions specified in the datasheet, including voltage, current, and temperature ranges. Ensure proper thermal management, and avoid operating the device near its absolute maximum ratings. Follow proper PCB design and assembly practices to minimize the risk of damage or failure.
  • Use a combination of measurement tools such as a spectrum analyzer, oscilloscope, and network analyzer to identify the root cause of the issue. Check the PCB layout, component values, and soldering quality. Verify that the device is operated within its recommended operating conditions and that the input and output matching networks are properly designed and implemented.
  • Handle the device with care to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat, and ensure that the workspace is ESD-protected. Avoid touching the device's pins or exposed internal components. Follow proper storage and shipping procedures to prevent damage during transportation.
