HMC510LP5 - Analog Devices

Description: VCO Oscillators VCO w/ Fo/2 & Div/4, 8.45 - 9.55 GHz

Download HMC510LP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

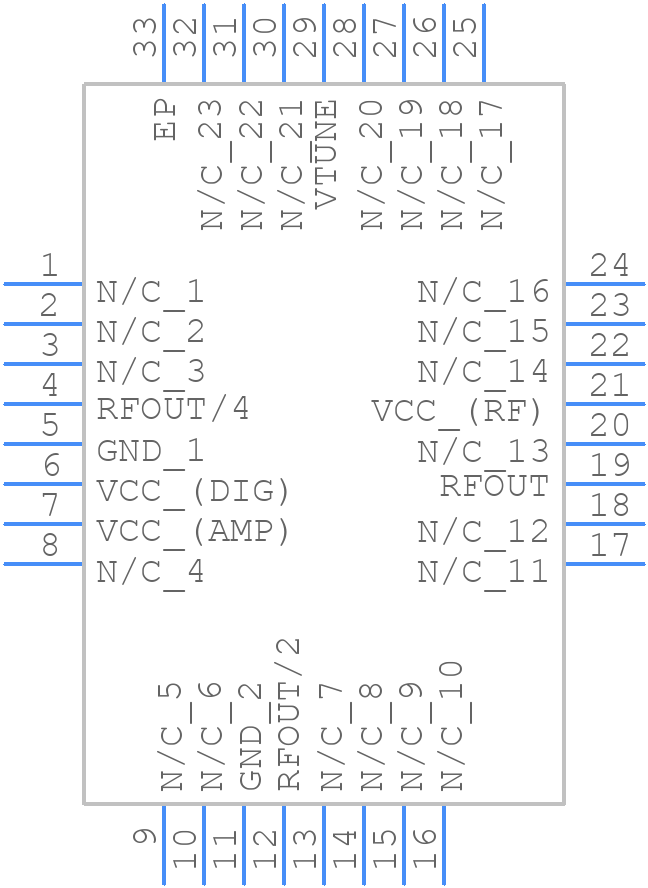

HMC510LP5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC510LP5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H510
click to zoom
3D Models
HMC510LP5 - Analog Devices - 3D model - Quad Flat No-Lead - H510
click to zoom

HMC510LP5 Details

  • Manufacturer Part Number:

    HMC510LP5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e0

  • Modulation Sensitivity:

    20 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    9550 MHz

  • Operating Frequency-Min:

    8450 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    10 dBm

  • Phase Noise:

    -116 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    360 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC510LP5 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC510LP5 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed in a quiet area of the board, away from high-frequency sources.
  • To optimize the HMC510LP5 for low noise performance, use a low-noise power supply, keep the input and output impedance matched, and use a low-pass filter at the output. Additionally, use a high-quality PCB with a solid ground plane, and avoid running high-frequency signals near the device. It's also recommended to use a shielded enclosure and to keep the device away from sources of electromagnetic interference.
  • The HMC510LP5 is rated for operation from -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and it's recommended to keep the operating temperature below 70°C for optimal performance.
  • Yes, the HMC510LP5 can be used in a non-50 ohm system, but it may require additional impedance matching networks to achieve optimal performance. The device is designed to operate in a 50 ohm system, but it can be adapted to other impedance systems with the use of external components.
  • Common issues with the HMC510LP5 include oscillations, noise, and gain compression. To troubleshoot these issues, check the PCB layout, power supply, and input/output impedance matching. Also, verify that the device is properly biased and that the input signal is within the recommended range. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC510LP5 Overview

Use the download button to access the HMC510LP5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC51, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
