- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC510LP5E
- Part Number HMC510LP5E
- Manufacturer Analog Devices
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 32 Lead 5x5mm SMT
- Released Date Aug 10, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC510LP5E Details
-
Manufacturer Part Number:
HMC510LP5E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32
-
Pin Count:
32
-
Manufacturer Package Code:
HCP-32-1
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC510LP5E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure good thermal conductivity and minimal thermal resistance to maintain junction temperature below 125°C.
-
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a load-pull analysis to determine the optimal impedance for maximum gain and efficiency.
-
Follow the recommended biasing and tuning procedures outlined in the datasheet and application notes. Ensure proper voltage sequencing, and use a slow ramp-up and ramp-down of the bias voltage to prevent damage.
-
Implement a thermal management system to keep the junction temperature below 125°C. Use a current sense resistor and a voltage regulator to limit the current and prevent overheating.
-
Handle the device with ESD-protective equipment and follow proper handling procedures to prevent damage. Use ESD-protective packaging and storage to prevent damage during transportation and storage.
Trust Checks
Community Provided
System Verified
Community Approved
HMC510LP5E Overview

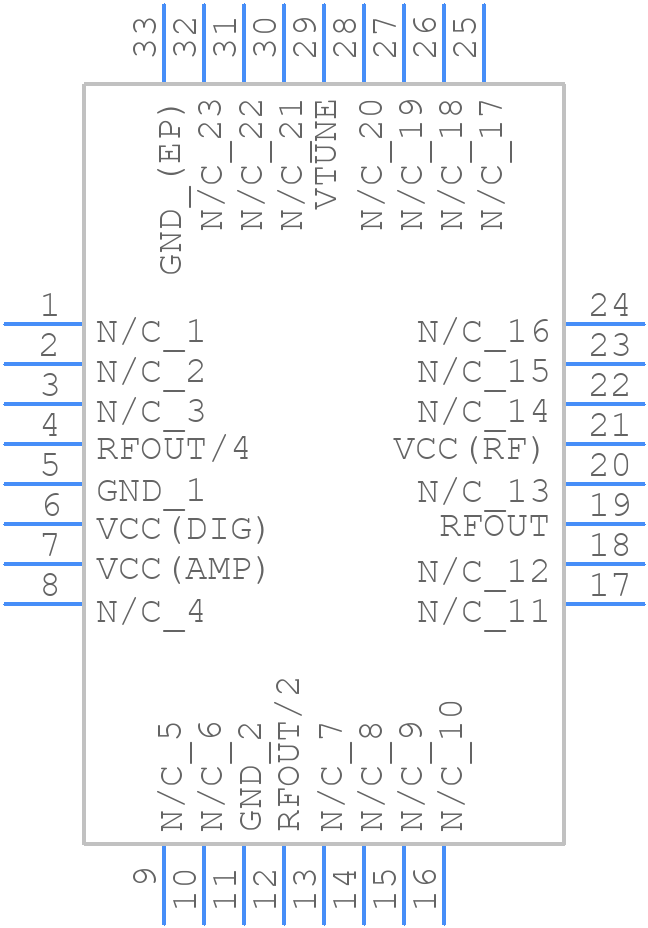

Use the download button to access the HMC510LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC51,
or try a keyword search, such as Voltage Controlled Oscillators
