HMC510LP5ETR footprint, schematic symbol and 3D model by Analog Devices

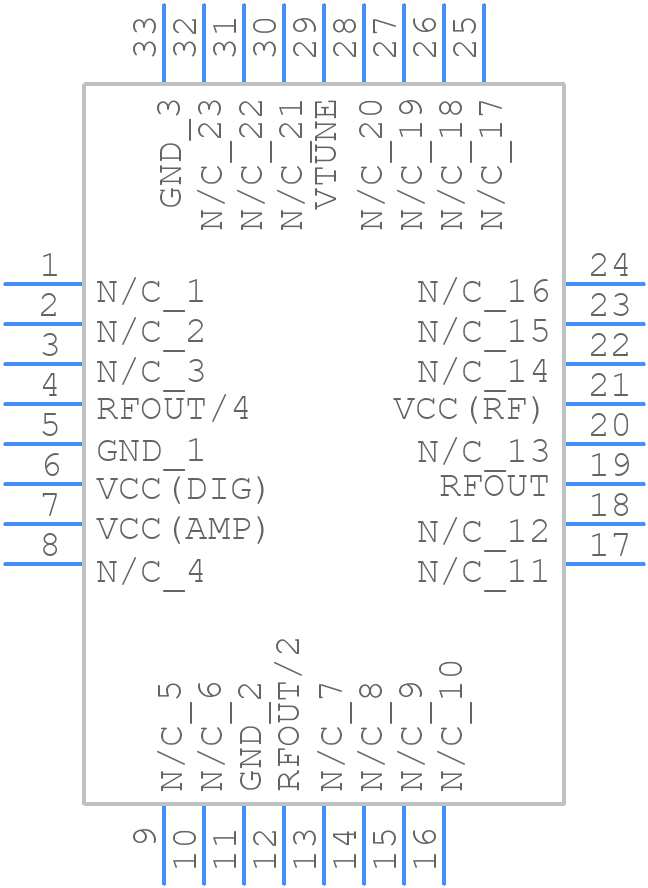

Symbol

click to zoom

PCB Footprints

HMC510LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC510LP5ETR
Part Number HMC510LP5ETR
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP_2026-1.5
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 11:22 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC510LP5ETR Details

Manufacturer Part Number:
HMC510LP5ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
TAPE AND REEL
Control Voltage-Max:
13 V
Control Voltage-Min:
2 V
JESD-609 Code:
e3
Modulation Sensitivity:
20 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
32
Offset Frequency:
100 kHz
Operating Frequency-Max:
9550 MHz
Operating Frequency-Min:
8450 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
10 dBm
Phase Noise:
-116 dBc/Hz
Physical Dimension:
5.1mm x 5.1mm x 1.0mm
Supply Current-Max:
360 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed

HMC510LP5ETR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
Use a network analyzer to measure the input and output impedance of the device, and then design the matching networks using a Smith chart or a circuit simulator like ADS or AWR.
The recommended voltage supply is 5V ±10%, and the maximum current is 420mA. Ensure that the voltage regulator can supply the required current and has a low dropout voltage.
Use a low-noise voltage regulator, add decoupling capacitors close to the device, and ensure good PCB layout practices such as separating analog and digital grounds.
The recommended operating temperature range is -40°C to 85°C. Ensure that the device is operated within this range for optimal performance and reliability.
